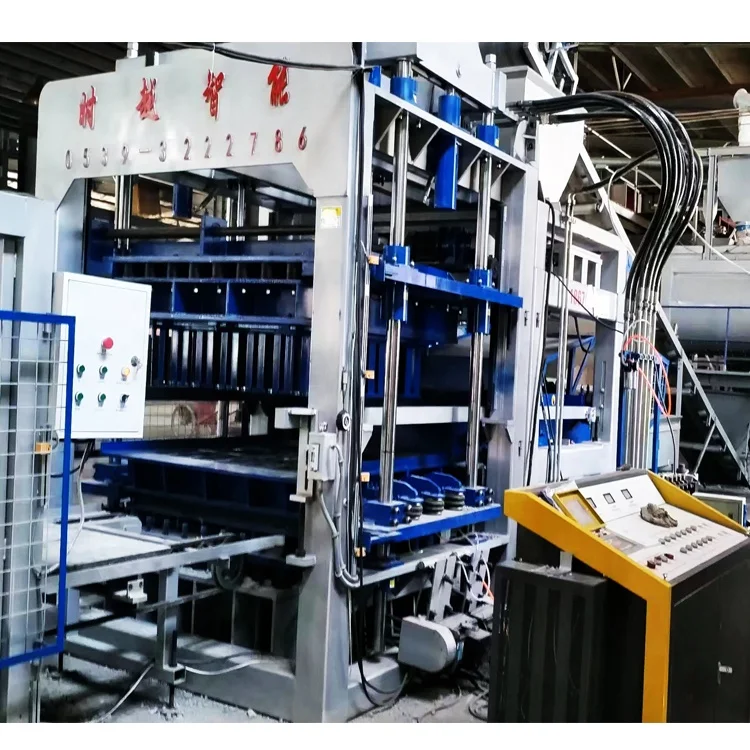

Products Description
1.Super-strong steel structure made of extensive imported oriainal parts.ensuring more stability and reliability for the concreteblock machine body.
2.The whole process uses a PLC aptitude control and dialogue system of human-machine interface .easy to analyze the chance signal ensure the best operation effect.
3.High-efficient and super-strong vibration system.computer control flow pressure of the hydraulic system.realize vertically synchronous vibration.frequency conversion and braking with synthetic outout compounded with double vibration sources thus greatly increase product compactness and mould box service life .
4. The cloth system adopts semi-closed screen reticular rotational feeding unit to feed materials forcedly . with evenness and even speed ensuring product intensity
5.Fitted with special hydraulic loading unit .readily realize mass and automatic production.saving a great deal of human power.maintenance field and circulating fund investment
Productivity
Type | Size (mm) | Molding cycle | Qty/Mould (pcs) | Qty/hour (pcs) | Qty/8hr (pcs) |
Hollow block | 400x200x200 | 15-20s | 15 | 2700-3600 | 21600-28800 |
Solid brick | 240x115x50 | 15-20s | 80 | 14400-19200 | 115200-153600 |
Our Advantages
Packaging And Shipping
customer working site
FAQ
