Products Description

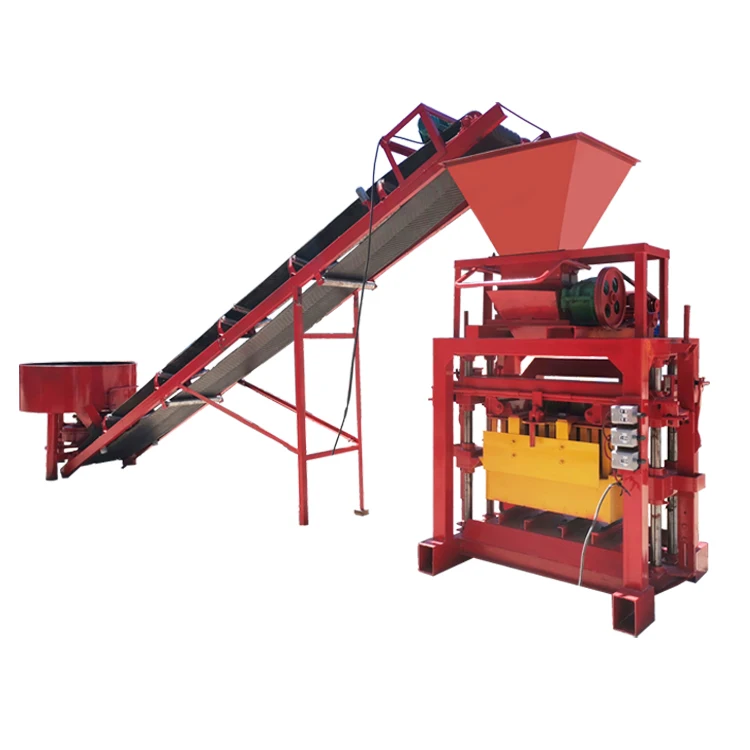

QTJ4-35 Mechanical manual block machine adopts four-lead. and super-strong vibration motor. And the upper mould with the bottom mould compression make the brick with high quality.more important. various kinds of materials can be used.which improves the efficiency greatly.
QTJ4-35 block machine specification | ||
Overall Dimension | 2050 x 1660 x 1900 mm | |
Main Vibration Form | Motor Vibration | |
Pallet Size | 850*450*20mm | |
Molding cycle | 35s | |
Overall Power | 9.8kw | |
Vibration Force | 35KN | |
QTJ4-35 Production Capacity | ||||||||
Size (mm) | Molding cycle | Qty/Mould (pcs) | Qty/hour (pcs) | Qty/8hr (pcs) | ||||
400x200x200 | 35-40s | 4 | 360-408 | 2880-3264 | ||||
400x150x200 | 35-40s | 5 | 360-510 | 2880-4080 | ||||
240x115x53 | 40-50s | 21 | 1512-1890 | 12096-15120 | ||||
200x100x60 | 40-50s | 14 | 1008-1260 | 8064-10080 | ||||
225×112.5×60 | 40-50s | 9 | 648-810 | 5184-6480 | ||||
Finished Blocks
Blocks Samples
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine.
*Training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Company Profile
Shiyue Machinery is a professional manufacturer which is engaged in independently researching and developing. manufacturing and selling crushing equipment.block machine etc construction building machines. We have exported product to many countries. such as Mongolia. Russia. Philippines.India. Vietnam. Uzbekistan. Kyrgyzstan. Kazakhstan. Nigeria. South Africa.Oman .Botswana. America etc. What’s more.we receive good feedback about service and quality. We are not main for sales. but also for development of the market all over the world. Do our best to satisfy customers’ need and gurantee quality is our principal .With 27 years’ brick block machine manufacture & export experience.welcome all the customers to our company and build business relationship with us
Packaging And delivery
customer working site
FAQ
