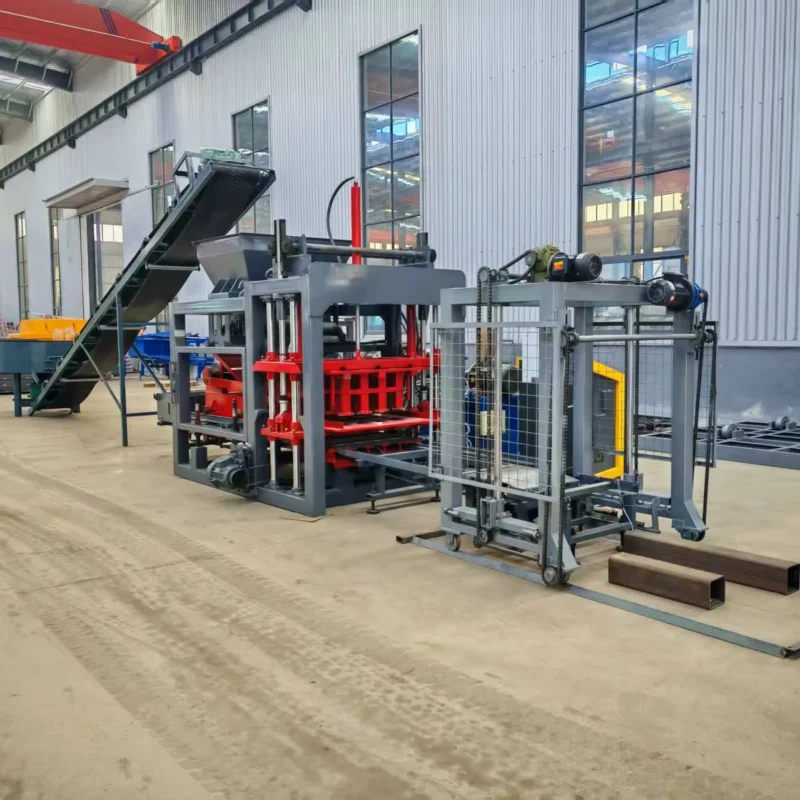

Block Machine Pictures
1. The machine adopts hydraulic system and the working procedure is very even and dependable. hydraulic
press together with efficiently vibration make the shape. it which has high density and good quality.
2. It is a practical machine that simple in structure. artistic in figure. Especially suitable to the production of the standard bricks. it can produce various kinds of paving bricks. porous bricks. roads bricks etc.
3. The reasonable material proportion have the capacity of making high density standard bricks. what’s more. it can be piled up directly.
press together with efficiently vibration make the shape. it which has high density and good quality.
2. It is a practical machine that simple in structure. artistic in figure. Especially suitable to the production of the standard bricks. it can produce various kinds of paving bricks. porous bricks. roads bricks etc.
3. The reasonable material proportion have the capacity of making high density standard bricks. what’s more. it can be piled up directly.
Overall Dimension | 7100*1600*2610mm |
dimension of host machine | 2800*1800*2550mm |
Rated Pressure | 16MPa |
Main Vibration Form | Platform Vibration |
Vibration Frequency | 4600 ( r/min) |
Pallet Size | 950*550*20/25mm |
Molding cycle | 15-25 (s) |
Overall Power | 27.5KW |
Host machine power | 19.2kw |
Vibration Force | 40KN |
General water consumption | 4T/day |
Total Mass | 5T |
Some details parts information
Motor : we will use Siemens or ABB brand(according to your needs )
PLC control System; we select original Siemens PLC combine with independently develop machinecontrol program . assure stable and
high-efficiency working status.it can also be customized
high-efficiency working status.it can also be customized
Hydraulic system : Double proportional hydraulic valve for smooth operation and long service life.we use Calyca or Youken brand
Capacity
Item | Specification size (mm) | Quantity per mold | Cycle molding | Per hour |
Hollow brick | 390*190*190 | 4pcs/mold | 15~20s | 720~960pcs/h |
Porous brick | 240*115*90 | 14pcs/mold | 15~20s | 2520~3360pcs/h |
Standard brick | 240*115*53 | 28pcs/mold | 15~17s | 5930~6720pcs/h |
customer working site
FAQ
1> Is this block machine suitable for us to use?
Answer:Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet your request.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks. Hollow bricks. Paving bricks.Solid bricks.etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine. for bigger machine. we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts).
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
Answer:Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet your request.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks. Hollow bricks. Paving bricks.Solid bricks.etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine. for bigger machine. we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts).
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
Packaging And delivery
