Specification
Product name | QTJ4-25 BLOCK MAKING MACHINE |
Overal dimension | 6400*1500*2700mm |
MOLDING CYCLE | 25s |
Vibration frequency | 2800-5100 r/min |
Exciting power | 60KN |
Power | 17.9KW |
Mixer | JQ350 |
Pallet size | 850x550x20mm |
Total weight | 2500KG |
Applied products | Concrete blocks.hollow block( 8 inch.6 inch).solid brick |
Raw materials | Crushes stones.sand.cement.dust.fly ash and so on. |
Production capacity
Type | Size(mm) | Pcs/Mould | Pcs/Hr | Pcs/8hr |
Hollow block | 390*190*190 | 4 | 480 | 3800 |
Hollow block | 400*150*200 | 5 | 600 | 4800 |
Solid brick | 240*115*53 | 18 | 2100 | 17000 |
Product Description

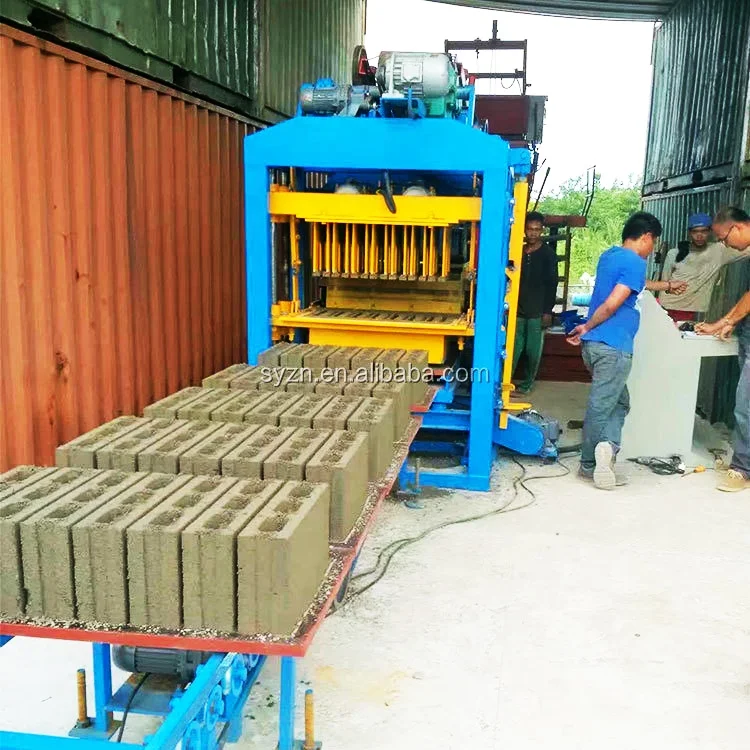

QTJ4-25 block machine introduction
For QTJ4-25 machine maybe you have following question?
Q1: What machines do I need for this production?
A1: 1.the mixer is used to mix the material to be average 2.the conveyor is for deliver the material to the machine 3.the host machine for the machine forming.Place the bricks on the board. stack them up. and move them to a dry place with a trolley 5.trolley and tools is free 6.you need choose the mould you want to do 7.pallet you can choose for loading and place the formed brick and place them here for drying. I suggest buy 300-500 pieces.
Q2: What bricks can be produced?
A2: Hollow.solid.paver in all size.Normally 8 inch.6 inch.5 inch.4 inch.If you need other size please contact me.
Q3: What is a pallet? What is its use in the production process?
A3: The pallet is actually used to place the newly made bricks during the brick production process. It is convenient for us to move the bricks to a dry and ventilated place before the bricks are completely fixed and wait for the bricks to dry and form.I will show you the picture and the video.
Q4:What is the machine output?
A4: Hollow 400x200x200 mm.4 pcs/mould .960pcs/hour.7680pcs/day.If you want to know other size.please send message to me.
Q5: Is there anything I can do without buying?
A5: 1)Mixer if you have.you can not buy.2) pallet is an optional part.which material is fiber glass.If you have in your local
market.some may do the wooden pallet is also can be used.It up to you.
1.It is a kind of semi-automatic machine based on the original medium and small-scale block machine.
2.It also makes the mould and the squeeze head works more precise.
3.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
4.It manufactures blocks with more average density and higher strength because of the above four reason.
QTJ4-25 block making machine can make the paver. solid.hollow curbstone only need change the mould. It is easy to operate.It adopts the hydraulic station so the pressure is high and make machine runs stable..It can protect machine then will make machine's use life much longer.Always ship to Jamaica. including Saint Thomas.Kingston. Saint Catherine. Manchester. Clarendon. West more land and so on. Machines are working very well with high production efficiency. block machine has become one of most popular block machine brand in Jamaica Welcome your inquiry. Shiyue factory will help you to achieve success in block business
Details
Block Samples
Company Profile
About us
Shandong shiyue intelligent machinery CO..LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops .more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseasclients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
Packing & Delivery
Nude packing in a 20GP.and also load about 500 pcs of pallets for your needs.
