Products Description
LY4-10 Interlocking Clay Brick Making Machine

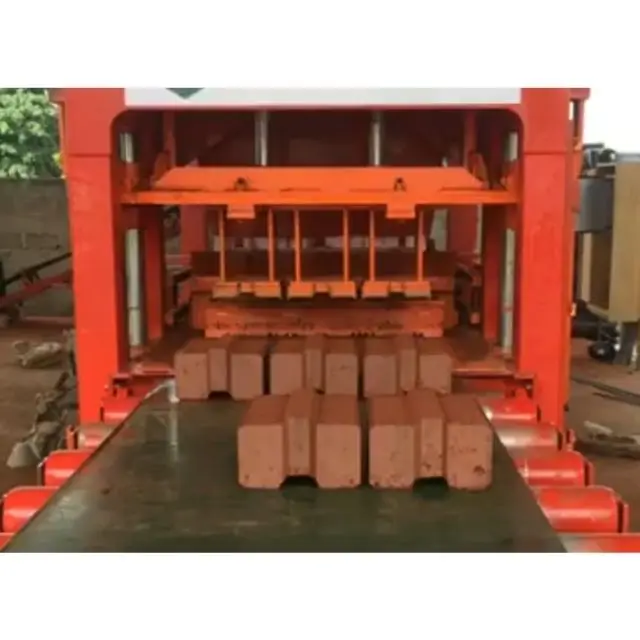

SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
Assembly of machines1、Put together the machine in the style of the above picture.2、Connect the main circuit to the electric box according to the wiring diagram.3、Connect the crusher. screen. mixer. conveyor to the small control box.Advantage:
* 1. PLC controlled.which can be easily operated by only one person
* 2.Four brick(according to the mold) would be made in less than 10 seconds.
* 3.By adjusting the screws.brick height can be changed.
* 4.Mould can be changed according to customer’s requirements.
* 5.High productivity.
* 6.Hydraulic to guarantee the brick's density and strength.
* 7.11520pcs bricks a day.
* 2.Four brick(according to the mold) would be made in less than 10 seconds.
* 3.By adjusting the screws.brick height can be changed.
* 4.Mould can be changed according to customer’s requirements.
* 5.High productivity.
* 6.Hydraulic to guarantee the brick's density and strength.
* 7.11520pcs bricks a day.
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine | ||
Machine | LY4-10 Clay Brick Machine with PLC | |
Dimension | 1600 x 1400 x 2100 mm | |
Total Mass | 1600 kgs | |
Power | 11KW | |
Molding Cycle | 10 s | |
Basic Equipment | JQ350 Concrete Mixer. 6M Conveyor Belt | |
Raw Material | Clay.soil .cement or other construction dregs | |
We can make molds following your requirement | ||
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
Preparation before commissioning
1. add lubricating oil to each friction part2. add 70L anti-wear hydraulic oil to the hydraulic tank3. add the 15KG oil to the gearbox of mixer4.open the power control switch inside the electric box
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
Handling Precautions
1. First start the mixer. and then add raw materials to the mixer. first mix the clay and cement fully. then add water. water do not add too much. the state of the raw material is very scattered. grab a group with hands 2. In the process of running the machine. in case of emergency. press the Urgent stop button to stop the work of the machine3. Clean up the unnecessary materials on the machine every day before work4. The hydraulic oil should be filtered or replaced according to the actual situation for 3-5 months5. Always check the fasteners and lubrication parts. do a good job of maintenance
SHIYUE LY4-10 Full Automatic Soil Clay Interlocking Brick Making Machine
Blocks Samples
