Main technical parameters
Overall Dimension | 8200*1700*2950mm |
vibration frequency | 0-60HZ |
Vibration Form | Platform Vibration |
moulding mode | load automatically.vibration moulding |
Pallet Size | 880*850mm |
Molding cycle | 15-20s |
Overall Power | 37KW |
Vibration Force | 45KN |
Total Mass | 7T |
Demolding method | Hydraulic |
Factory Area | 1200m2 |
Products Description
Characteristics 1

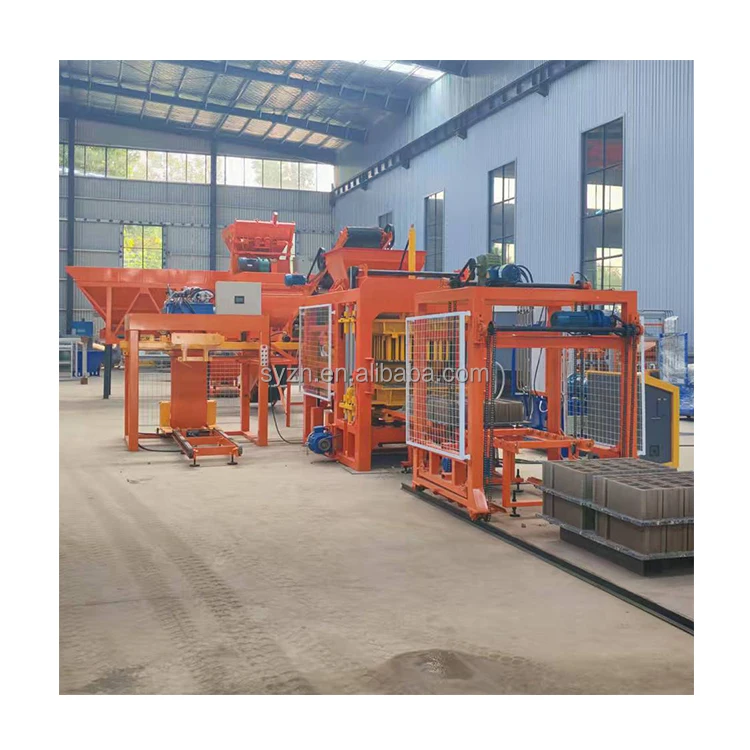

This equipment is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic. machinery as sideline. vibrate and press to finish molding blocks. The compressive strength of all blocks more than 15 MPa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation. insulation.external dimensions are precise. the blocks are more consistency. low waster rate.
Characteristics 2
A high degree of automation. intelligent electronic control. automatic process is controlled by advanced PLC(Programmable Controller). input and store of process data and touch screen for blocks. it have ideal of flexible Human Conversation Interface. PLC contain advanced safe logic circuit to control the action interlock. also contain fault diagnosis system
Characteristics 3
Good reliability. Hydraulic system preference for to improved technology and perfected workmanship of design. Use independent integrated type hydraulic station. Avoid influence of dust and main machine vibration for hydraulic system. Make sure process reliability of hydraulic system.
Characteristics 4
Good adaptability of raw material. advanced step vibration molding technology. Adjusting measures to differing conditions. Use of all kinds of waste ash and slag. reasonably reduce the dosage of cement. make many kinds of high quality bearing or non-bearing blocks.
Common blocks theoretical Capacity and common blocks samples
Type | Size (mm) | Molding cycle | Qty/Mould (pcs) | Qty/hour (pcs) | Qty/8hr (pcs) |
Hollow block | 400x200x200 | 15-20s | 6 | 1080-1440 | 8640-11520 |
Hollow block | 400x150x200 | 15-20s | 8 | 1440-1920 | 11520-15360 |
Solid brick | 240x115x53 | 15-20s | 32 | 5760-7680 | 46080-61440 |
Rectangular brick | 200x100x60 | 20-25s | 21 | 2160-2880 | 17280-23040 |
Zigzag brick | 225×112.5×60 | 20-25s | 15 | 2160-2880 | 17280-23040 |
Packaging And Shipping
Customer Visiting and customer working site
Company Profile
company simple introduction
Shandong shiyue intelligent machinery CO.. LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops . more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseas clients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
FAQ
1> Is this block machine suitable for us to use?Answer:Could you pls tell us the investment plan?the capacity you want?what kind of bricks do you want to make?Then the most suitable model will be recommended to you..2>Which industry did this block machine usually be used in?Answer: Hollow Block.Muticelullar bricks.Paving bricks.Standard bricks.etc3>How to use the block machine?Answer: We will send the operating manual to you or arrange engineer fly to your site for installation and training after you purchase the machine.4>How about the after sale service of block machine?Answer: 1 year guarantee for the whole machine (without the spare parts).good machine no need after sale service.we keep the superior quality machine for you. 5>what's your payment termour common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
