Products Description

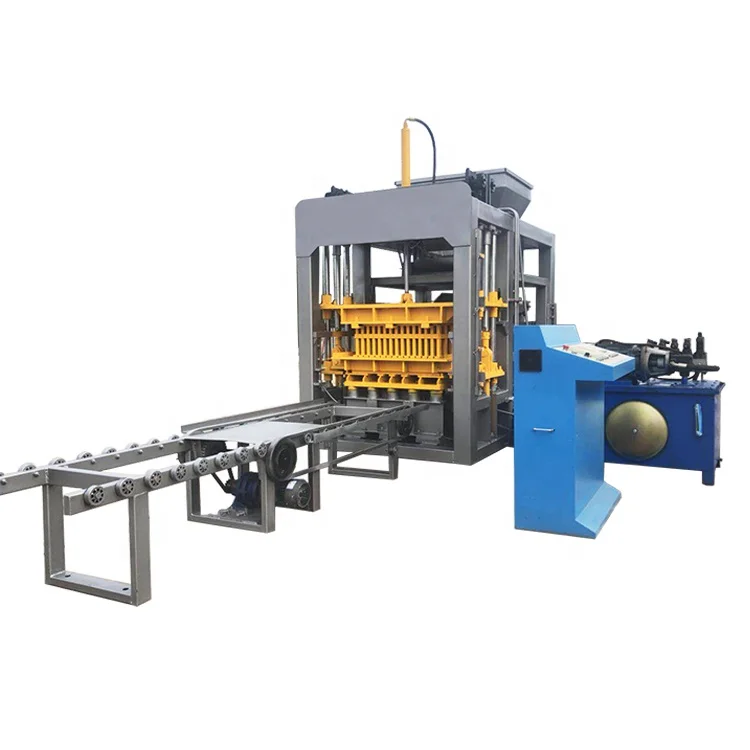

1. QT5-15 hydraulic automatic concrete hollow block machine is a compact machine with electric and hydraulic system. each procedure action locks with each other to guarantee the machine operate safely. easily and dependability.
2. Through mold-releasing oil cyclinder. the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration. so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density.
especially suitable to produce the standard blocks. which can be piled up immediately so that the pallet investment can be saved directly.
3. The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash. cement. sand. stone. slag. and so on. It can severs several purposes and produce various specification standard bricks. concrete blocks. porous blocks. paving bricks etc.
2. Through mold-releasing oil cyclinder. the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration. so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density.
especially suitable to produce the standard blocks. which can be piled up immediately so that the pallet investment can be saved directly.
3. The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash. cement. sand. stone. slag. and so on. It can severs several purposes and produce various specification standard bricks. concrete blocks. porous blocks. paving bricks etc.
common blocks theoretical Capacity and common blocks samples
QT5-15 parameters | ||
Machine power | 26.5kw | |
Molding cycle | 15-20 seconds | |
Hydraulic pressure | 16-21 Mpa | |
Machine weigh | 6000KGS | |
Overall size | 7400*1950*2800mm | |
Voltage | According to your local voltage | |
Main Vibration Form | Platform Vibration | |
Pallet Size | 1100*550mm | |
Vibration Force | 45KN | |
Applied Products | Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc. | |
Raw Material | Crushed stone. sand . cement. dust. and fly ash. gravel. slag. and other raw material etc. | |
Theoretical productivity | ||||||||
Items | Block size | Pcs/mould | Cycle molding | Pcs/day | ||||
Hollow Block | 400*200*200mm | 5 | 15-20s | 7200-9600 | ||||
Porous Block | 240*115*90mm | 16 | 15-20s | 23000-28800 | ||||
Standard Block | 240*115*53mm | 32 | 15-17s | 61440-70400 | ||||
