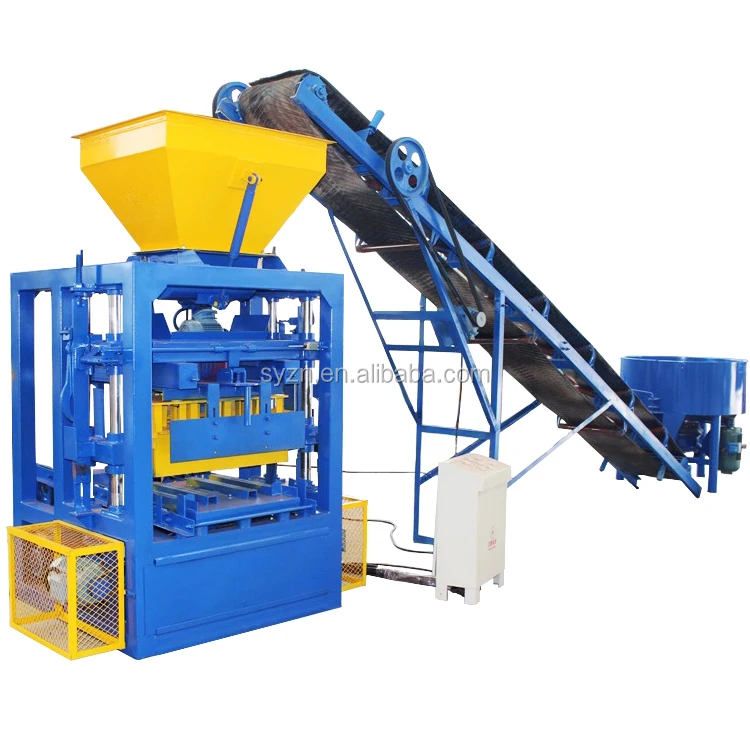

qt4 -26 semi-automatic block machine/ interlocking block making machine/ brick making machinery
main block making mahcine
technical parameter
dimension of host machine | 2060*1730*2580mm |
Rated Pressur | 26MPa |
Main Vibration Form | Platform Vibration |
Vibration Frequency | 4500 ( r/min) |
Pallet Size | 880*480*25mm |
Molding cycle | 15-20 (s) |
Power | 19.75KW |
Host machine power | 14.25kw |
Vibration Force | 40KN |
Total Mass | 2T |
Demolding method | semi-automatic |
Mixer model | JQ350 |
Applied Products | Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc. |
Raw Material | Crushed stone. sand . cement. dust. and fly ash. gravel. slag. and other raw material . etc. |
Applied Fields | widely used in buildings. road pavers. squares. gardens. landscaping. |
cetification
workshop
customers
delivery&packge
Packing is nude package or plastic according to customer need
1. The whole brick machine production line equipment is mainly the full container sea shipping.
2. Brick machine equipment finish manufacturing and testing. next to clean up. and then do another paint protection.
3. Before shipment to use plastic film winding. wrapped the entire brick machine in case of water or moisture.
4. Then load brick machines into the container by forklift.
5. During loading to tighten the machine with reinforcement ring in container. so as to avoid the damage by transport bumps on the brick machine.
our services
Our services |
1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation. Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within one year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained. customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market. provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems. and your success will add new glory to us.
