Product Description
Overall Dimension | 7100*1600*2610mm |
Rated Pressure | 16-21MPa |
Main Vibration Form | Platform Vibration |
Vibration Frequency | 4600 ( r/min) |
Pallet Size | 950*500mm |
Molding cycle | 15-25 (s) |
Overall Power | 27.5W |
Function and instruction
QT4-20 block making machine of our company is professional equipment for building blocks and bricks. Sand and cement can be mixed with flyash. slag. gangue or other industrial waste residue as material. Different kinds of specifications of hollow block and bricks like pavers. grass growing block. curbstone and standard bricks can be produced by changing the mould. The equipment is driven by hydraulic system and monitored by Non-contact proximity switch. collecting machine. electricity. light. hydraulic and high-frequency vibration technology as one unit. electrical and hydraulic appliance in the equipments are all from overseas or domestic famous brand.
advantage and feature
QT4-20 has the following features: tight structure. reliable function. easy operation. high efficiency. little malfunction. simple
maintenance. Block is formed mainly in hydraulic way and then by mechanical way. finished by vibration and pressing. The strength
of extension of finished products can reach 15Mpa or above with high density degree. good feature of anti-freezing and
anti-permeability. sound insulation and heat preservation. and accurate overall dimension. So QT4-20 block making machine is ideal
environmental protection and building materials equipment.
maintenance. Block is formed mainly in hydraulic way and then by mechanical way. finished by vibration and pressing. The strength
of extension of finished products can reach 15Mpa or above with high density degree. good feature of anti-freezing and
anti-permeability. sound insulation and heat preservation. and accurate overall dimension. So QT4-20 block making machine is ideal
environmental protection and building materials equipment.
Detailed Images

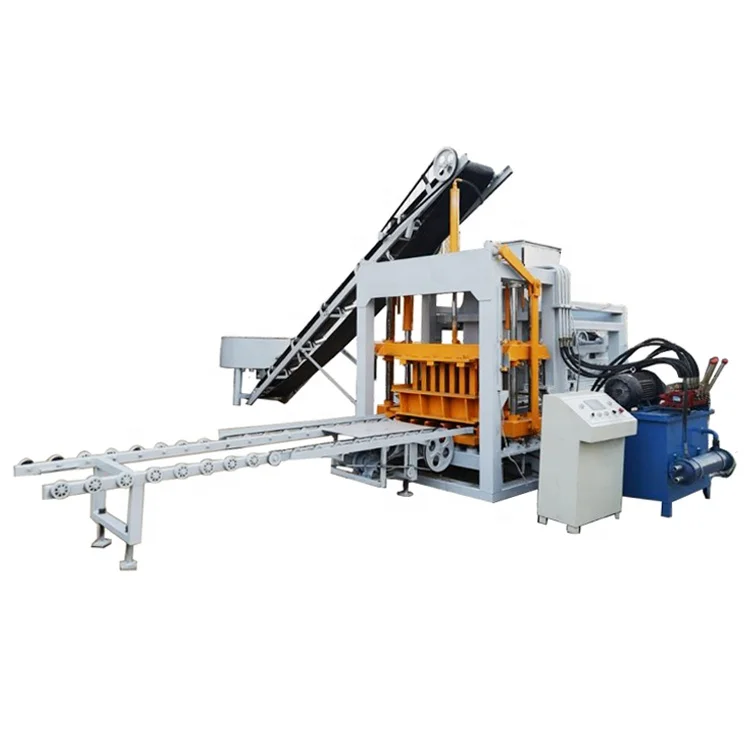

different sides of QT4-20 semiautomatic concrete block machine
common blocks capacity and samples
Type | Size (mm) | Molding cycle | Qty/Mould (pcs) | Qty/hour (pcs) | Qty/8hr (pcs) |
Hollow brick | 400x200x200 | 20-30s | 4 | 480-720 | 3840-5760 |
Hollow brick | 400x150x200 | 20-30s | 5 | 600-900 | 4800-7200 |
Hollow brick | 400x100x200 | 20-30s | 8 | 960-1440 | 7680-11520 |
Paver blocks | 200x100x60 | 20-30s | 16 | 1920-2880 | 15360-23040 |
Solid blocks | 240x115x53 | 20-30s | 28 | 3360-5930 | 26880-47440 |
Related Products
Packing&Shipping
the block machine is fixed into the container by steel
it need use 40ft high container to load
After Sales Service
after sales service ways
1.7×24 hours service
2.within 24 hours offer solve ways.
3.online video face to face service
4.local service. if necessary we can sent our engineer fly to customer site for guiding installation and train operation.
5.free spare parts.
Company Introduction
Shandong shiyue intelligent machinery CO.. LTD is the leading supplier of concrete machinery and plant . We have two factory areas covering more than 200.000 square meter areas .more than 50000 square meter workshops . more than 300 rich experienced engineers and technical persons. Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseas clients from all over the world. We firmly believe"quality creates value. profession accomplishes success".
Customer Visiting and customer working site
FAQ
1> Is this block machine suitable for us to use?
Answer:Could you pls tell us the investment plan?the capacity you want?what kind of bricks do you want to make?Then the most suitable model will be recommended to you.
2>Which industry did this block machine usually be used in?
Answer: Hollow Block.Muticelullar bricks.Paving bricks.Standard bricks.etc
3>How to use the block machine?
Answer: We will send the operating manual to you or arrange engineer fly to your site for installation and training after you
purchase the machine.
purchase the machine.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts).good machine no need after sale service.we keep the superior quality machine for you.
5>what's your payment term?
Answer:our common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
Answer:our common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
