Products Description

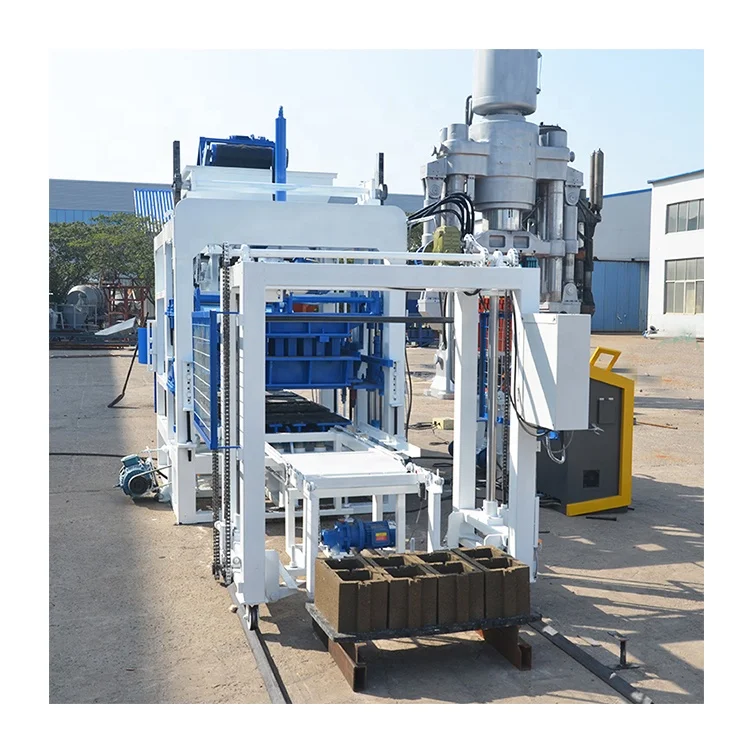

QT4-18 full automatic concrete block making machine
1. QT4-15 use hydraulic technology. so the blocks produced areof good quality.large density and high strength.
2. All mould use precise line cutting and carburizing treatment to prolong its service life.
3. The machine frame is welded by special thick steel rectangle welding techniques. thus it is strong. durable and can resist vibration.
4. The full automatic block machine can produce all kinds of blocks. just by changing the moulds.
5. It producesvarious bricks/blocksincluding color-face bricks (layered material feeding).through-body tiles. lock linkage blocks. road curb bricks. hydraulic blocks. hollow blocks. perforated bricks. and standard bricks etc.
6. All mould use heat treatment. low cost and large capacity. It is anideal choicefor customer.
2. All mould use precise line cutting and carburizing treatment to prolong its service life.
3. The machine frame is welded by special thick steel rectangle welding techniques. thus it is strong. durable and can resist vibration.
4. The full automatic block machine can produce all kinds of blocks. just by changing the moulds.
5. It producesvarious bricks/blocksincluding color-face bricks (layered material feeding).through-body tiles. lock linkage blocks. road curb bricks. hydraulic blocks. hollow blocks. perforated bricks. and standard bricks etc.
6. All mould use heat treatment. low cost and large capacity. It is anideal choicefor customer.
common blocks theoretical Capacity and common blocks samples
QT4-15 parameters | ||
Machine power | 27.5kw | |
Molding cycle | 15-25 seconds | |
Hydraulic pressure | 20 Mpa | |
Machine weigh | 5800KGS | |
Overall size | 7100*1600*2610mm | |
Voltage | According to your local voltage | |
Main Vibration Form | Platform Vibration | |
Theoretical productivity | ||||||||
Items | Block size | Pcs/mould | Cycle molding | Pcs/day | ||||
Hollow Block | 400*200*200mm | 4 | 15-20s | 5760-7680 | ||||
Porous Block | 240*115*90mm | 14 | 15-20s | 25200-33600 | ||||
Standard Block | 240*115*53mm | 28 | 15-17s | 59300-67200 | ||||
