Products Description

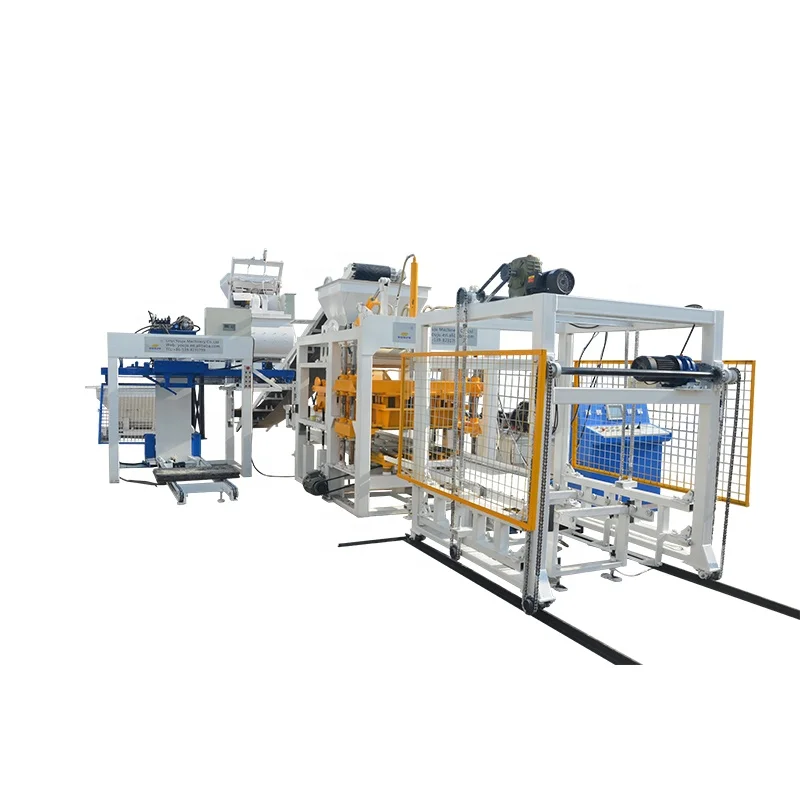

QT4-15 block machine introduction
1.Adopt Siemens Motor. this brand produce the best motor in the world. its lifespan is times than that of common motor.
2. When pressing. and computer controlled directional vibration. frequency and brake to cancel the vibration energy.
3. Feeding in low-frequency. vibrating in high frequency. and increasing in Head tanks. Table and mould vibrating together will make concrete fully liquefied and exhausted in 2-3 seconds to achieve high-density and high strength. Particularly be suitable for the production of high-strength blocks. you can stack immediately after forming.
4. Hopper installed a swing-type cutting device. it can put the materials into the molding box uniformly by adjusting the swinging fork.
5. The host keeping material controlled by photoelectric. material that is used upon to avoid the impact of aftershocks. some concrete liquefied advanced.
2. When pressing. and computer controlled directional vibration. frequency and brake to cancel the vibration energy.
3. Feeding in low-frequency. vibrating in high frequency. and increasing in Head tanks. Table and mould vibrating together will make concrete fully liquefied and exhausted in 2-3 seconds to achieve high-density and high strength. Particularly be suitable for the production of high-strength blocks. you can stack immediately after forming.
4. Hopper installed a swing-type cutting device. it can put the materials into the molding box uniformly by adjusting the swinging fork.
5. The host keeping material controlled by photoelectric. material that is used upon to avoid the impact of aftershocks. some concrete liquefied advanced.
Product Paramenters
Host Machine Power | 27.5KW |
Moulding Cycle | 15s |
Dimension Of Host Machine | 7100*1600*2610mm |
Pallet Size | 1020*570mm |
Weight Of The Host Machine | 5T |
Vibration Force | 40KN |
Mixer Model | JS500 |
Voltage | 380V |
General Water Consumption | 4T/every day |
Workers | 3~4 |
Workshop Area | 150m² |
Theoretical producivity
Block samples
Product packaging
Company Profile
Customer Visiting
