Products Description

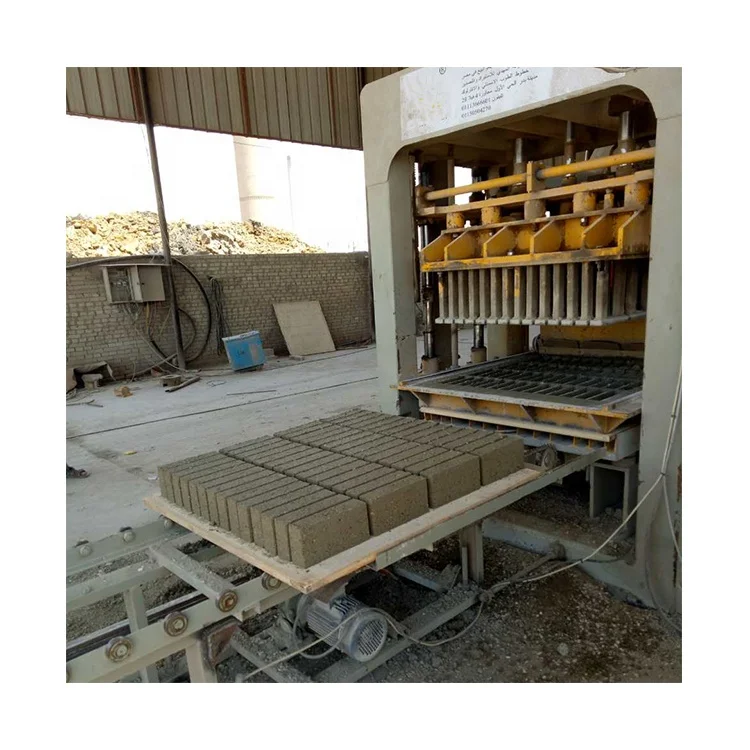

1. QT10-15 fully automatic concrete block making machine is latest developed equipment product. which is a special-purpose equipment for making building block making machine. The material of this machine can be flyash. slag. gangue or the others industrial waste. river sand. gravel. cement etc. Makes different sizes of hollow blocks. porous blocks. curbstone. pavement blocks. grass blocks. slope-protecting blocks. ring-tree blocks etc. If add color machine. it can make layering blocks.
2.QT10-15 Hydraulic cement block machine adopts gantry frame type structure. made by super super steel.strong and shock resistant.very reliable.The design adopts the driving type material storage mode with independent foundation.to send the material when it is needed at once.Net wave swing type of material feeding device.with good feeding effect.Cartridge type welding mold.adopts qualified manganese steel by carburizing and quenching.no transformation and no damage after using 100000times.It can
make the simple production line with PL1200 batching machine. JS750 mixer.8m conveyor belt and stacker.
make the simple production line with PL1200 batching machine. JS750 mixer.8m conveyor belt and stacker.
QT10-15 automatic hydraulic concrete block manufacturing machine price concret make block brick making machine for sale
Our Advantages
common blocks theoretical Capacity and common blocks samples
Technique Parameters | ||
Machine power | 44kw | |
Molding cycle | 15-20 seconds | |
Hydraulic pressure | 16-21 Mpa | |
Machine weigh | 10000KGS | |
Overall size | 9350*2320*2950mm | |
Voltage | According to your local voltage | |
Main Vibration Form | Platform Vibration | |
Pallet Size | 1100*900mm | |
Applied Products | Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc. | |
Raw Material | Crushed stone. sand . cement. dust. and fly ash. gravel. slag. and other raw material etc. | |
Capacity | ||||||||
Items | Block size | Pcs/mould | Cycle molding | Pcs/day | ||||
Hollow Block | 400*200*200mm | 10 | 16-20s | 18000 | ||||
Porous Block | 240*115*90mm | 28 | 15-20s | 67200 | ||||
Standard Block | 240*115*53mm | 52 | 15-17s | 124800 | ||||
Packaging And Shipping
Customer Visiting and customer working site
These are our customers from all over the world. they are from Kenya. Tanzania. India. Russia. Australia. the United States. Ghana and other countries. Their arrival is a recognition of the quality of our brick machine and the affirmation of our service. We look forward for your visit.
Company Profile
Recommend Products
FAQ
1. Is this block machine suitable for us to use?
Answer:Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet your request.
2.Which industry did this block machine usually be used in?
Answer: Interlocking bricks. Hollow bricks. Paving bricks.Solid bricks.etc
3.How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine. for bigger machine. we can offer engineer fly to your side for installation and training your workers.
4.How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts).
5.what's your payment term?
our common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
