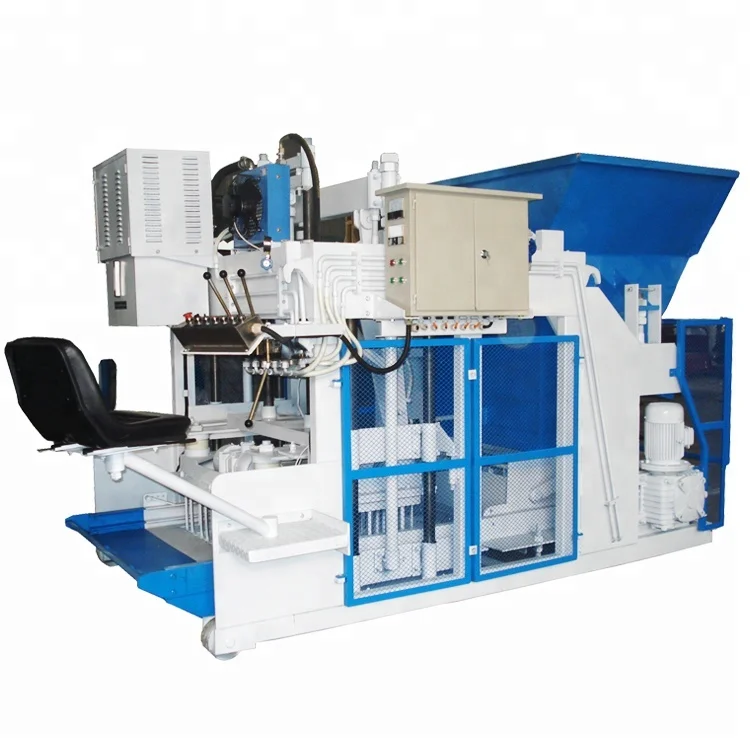

QMY10-15 moving automatic cement hollow block machine
QMY10-15 moving automatic cement hollow block machine
a. QMY10-15 block machine is mobile efficient block machine.
b. The machine has reasonable design. favorable property.and vibration motor.
c. It manufactures bricks with good quality.large density.and high strength.
Technical parameters
Overall dimension | 3150*1800*2400mm |
Hydraulic method | Mould vibration |
Demold method | Hydraulic |
Pressure | 21Mpa |
| Excitation frequency | 4500 r/min |
Total power | 16kw |
| Total mass | 4500kg |
| Molding cycle | 15s |
| Molding | 10 Pcs/mould(400*200*200/390*190*190 mm) |
| Types of bricks | 390*240*190/390*150*190/390*115*190/Customize |
| Raw material | Crushed stone. sand. cement. dust and coal fly ash. cinder. slag.gangue. gravel. perlite. and other industrial wastes. |
Productivity
| Size(L*W*H)mm | Pcs/mould | Pcs/hour | Pcs/day(8h) |
| 400*200*200 | 10 | 2400 | 19200 |
| 400*150*200 | 12 | 3360 | 26800 |
| 400*120*200 | 16 | 3840 | 30720 |
| 400*100*200 | 18 | 4320 | 34560 |
Picture of products
Installation service: |
Machine installation and operation training will be supported by our engineers in buyer’s place about one week. The buyer should support following: |
1. USD80/day for our engineers (total 2) |
2. Accommodation and Round-trip tickets. |
After sale service: |
During the 1st year. we will supply followings for free: |
1. spare parts of machine and equipment (except quick-wear parts) |
2. repair for equipment’s broken (design. work process and production) |
FAQ
Q1: What is the Warranty for the machine?
A1: For the machine.we have 1 years warranty(except the wearing part ).If any quality
problems on our side occured in this period .we will take on the shipping cost and replacement.
Q2: What kinds of payment methods can be accept?
A2: Payment: T/T. Western Union. MoneyGram.PayPal; 30% deposits; 70% balance before delivery
Q3: Who will pay the delivery cost?
A3: Because block machine need to be delivery by sea or road.so customers will in charge of the
delivery cost.
Q4: what's the motor voltage?
A4:Our local voltage is 380v. 3phase. 50HZ. motor voltage could be customized to fit your local
voltage
Q5: Do you have Operation Instruction Manual
A5: Yes.We will send the Operation Instruction Manual to you after you purchase the machine.
