New Performance Concrete Pipe Making Machine Line in Uganda Direct Factory

concrete pipe making machine/cement pipe forming machine/culvert pipe machine price

Concrete pipe mould is the moulding working with suspension roller pipe machine.it is customized .

This machine can make pipes with diameter from 300-2500mm and length from 2-4meters.
We can design many kinds of the pipe joint. including flush joint. socket& spigot joint
And all the concrete pipes are widely used in administrative drainage. agricultural field

irrigation. road culvert and deep water well.

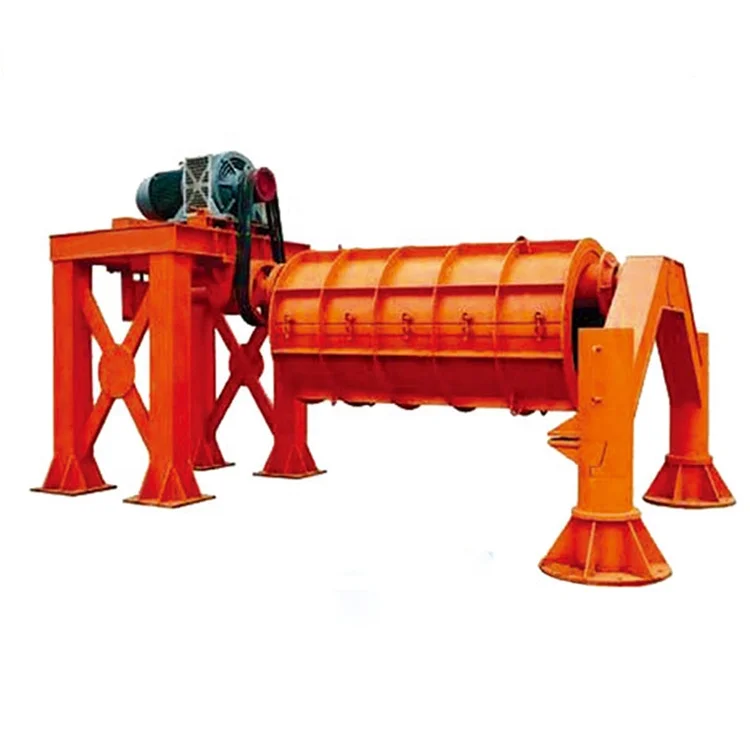

This machine uses the Roller to support the concrete pipe mould. and produce the roller force to concrete in the mould. When the roller rotate at a high speed. the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force. and when the mould with the inner concrete pass on the roller. the concrete between the mould and the roller will be compacted solid to form a pipe.

Character of Suspension Roller type Concrete pipe making Machine

1 Short production Cycle: because of the good effect of the roller to compact the concrete. every pipe just need 3-5 minutes with high speed roller rotation.
2 This pipe machine uses the dry cast material. there will no waste cement mud. then it won't pollute the environment.
3 During the production. the noise is low. it is about 80-90 DB.
4 The concrete pipes are with high pressure load and with high production efficiency.
