Products Description

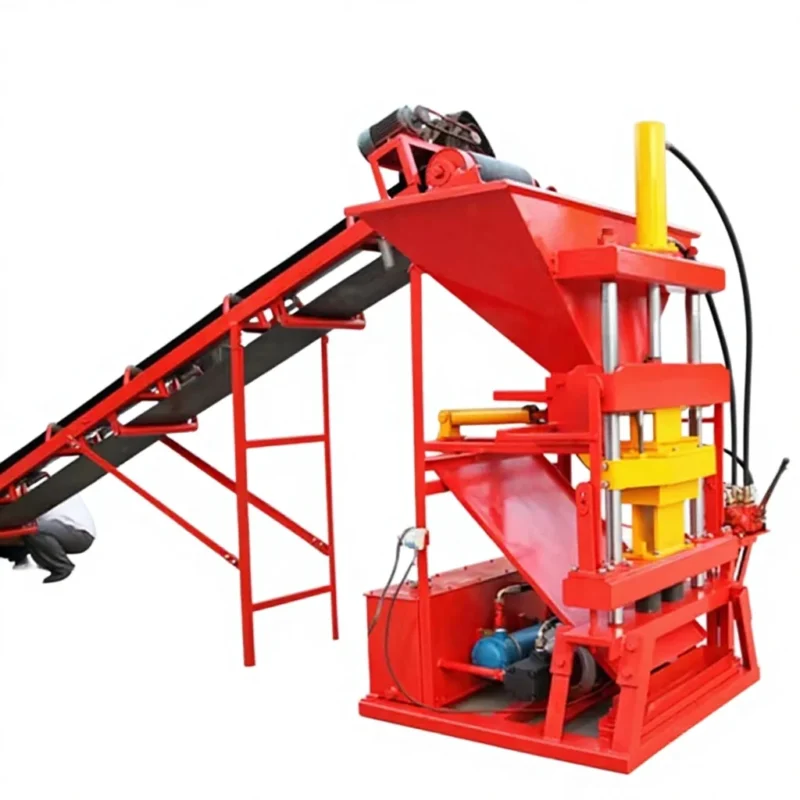

ECO 2700 CLAY BRICK MACHINE
The 2700 interlocking brick machine. is the special equipment which can make the construction interlocking bricks. There is a wide range raw material available cement. sand. clay. shale. fly ash and white lime or other materials. Various shapes and specifications of pavement bricks can be made by changing the moulds. Device driven by hydraulic system. Mainly electrical appliances and hydraulic components are imported original parts or domestic equipment of national famous brands.with exquisite structure. reliable performance.easy operation.low malfunction. strong applicability and simple maintenance as characteristic. Hydraulic cooling system is controlled by a temperature controlling switch. run automatically according to the hydraulic oil temperature. reducing energy consumption. Finished products molding from hydraulic system driver. hydraulic pressure to make it complete. The production of interlocking bricks bearing strength can reach above 12Mpa. high compactness. frost resistance. impermeability performance is good. sound insulation. heat insulation. and also heat preservation performance is good. appearance size accurate. is the ideal environmental protection and building materials equipment.
ECO 2700 CLAY BRICK MACHINE
Molds Changeable For Various Blocks
Attention!! When change the molds(1)Power off(2)Loosen bolts which fixed cavity and the upper and down molds and unload upper die and lower die.(3)Change the upper and down die that you want to produce. bolt does not need to fasten. you just need to tighten.(4)Open power. operating the lever. to make the the lower and upper molds match into the cavity.(5)Adjust the position of the upper and down mold with the mold cavity. so that they slide smoothly. a suitable gap (in normal. with a gap of 0.5mm between the upper and lower molds and the mold cavity). because the step (3) no fastening bolts. so at this time the upper and lower mold with molds cavity can be active. but may need tap to move.(6)After finishing adjustment.tightening the upper and lower mold cavity bolts and nuts. to lock effect.
Main technical parameters
Dimension | 1600 x 1300 x 2330 mm |
Total Mass | 1100 kgs |
Engine | 7.5kw/12hp diesel engine |
Pressure | 16 Mpa |
Molding Cycle | 10-15s |
Capacity | 2800 pcs/day |
Raw Material | Clay. Cement. Sand. Soil.etc |
Blocks Samples
Material proportion
(1)cement(10%)+clay(90%)+water(appropriate)(2)cement(10%)+viscous material(20)+sands(70%)+water(appropriate)【viscous material??shale powder .white lime)etc??3)cement(10%)+Chemical accelerator(20%)+sands(70%)+water(appropriate)【Chemical accelerator??Na2SiO3.water glass)etc??Mark：Ratio listed is just for reference and production ratio should be made by the local situation)
