Products Description

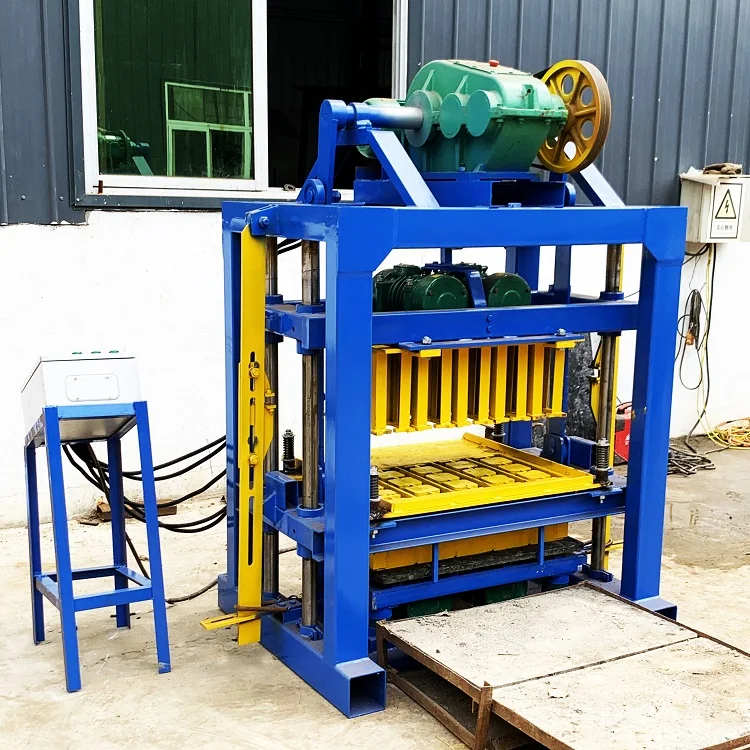

QTJ4-40 block machine introduction
1.Based on the former block machine. this type block machine is the reformed machine with reasonable design. favorable property. and super strong vibration motor. And it manufactures bricks with good quality. large density. and high strength.
2.This machine adopts top die push and pull and automatic scraper. which is simple to operate as well as the large-scale equipment.
2.This machine adopts top die push and pull and automatic scraper. which is simple to operate as well as the large-scale equipment.
Product Paramenters
QTJ4-40 block machine parameters | ||
Capacity | 2800pcs/8hours | |
Raw material | Concrete. cement. fly ash. crushed stone. sand . dust. gravel. slag.etc. | |
Applied Products | Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc. | |
Main Vibration Form | Platform Vibration | |
Vibration Frequency | 2800(r/min) | |
Pallet Size | 850*450mm | |
Ratio of raw material | cement 8%-10%.sand 30%-40% .stone:50%-60%about cement :sand : stone is1:4:5. | |
Machine weight | 1T | |
Factory Area | 200m2 | |
Overall size | 1350*1460*1800mm | |
Worker | 1-3 people | |
QTJ4-40 Production Capacity | ||||||||
Item | Size (mm) | Mould (pcs) | Per hour (pcs) | Per day (pcs) | ||||
1 | 400*200*200 | 4 | 360 | 2880 | ||||
2 | 400*150*200 | 5 | 500 | 4000 | ||||
3 | 225*112.5*60 | 9 | 900 | 7200 | ||||
