Products Description

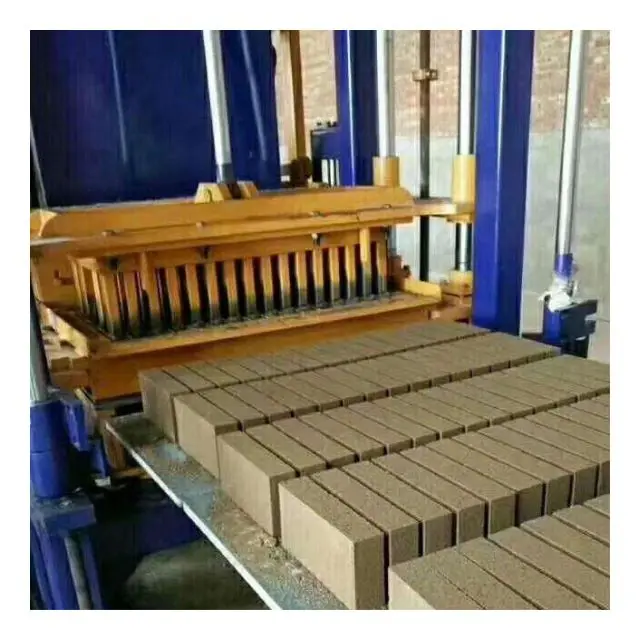

14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds
QT5-15 automatic interlock block maker machine. is fixed special equipment for building construction. The concrete hollow block machine can widely use fly ash. cinder. coal gangue and other industrial waste residue and river sand. gravel. cement. and other materials.It can make hollow block. porous brick. road kerb. road brick and grassing brick. ring tree brick. slope protection brick and concrete products. Add the color material feeding machine (color pigment) can produce colored products.
This automatic cement block making machine is one comprehensive technical equipment of mechanical. hydraulic. computer automatic control . with features of high efficiency. reasonable design. compact structure. simple operation and convenient maintenance.Block molding takes hydraulic as priority . mechanical vibration pressure to finish. The producing compressive strength can reach 15 mpa (mpa) above. with high compactness. antifreeze. impermeable performance is good. with sound insulation. heat insulation. heat preservation performance is good. physical size is accurate. rejection rate is low.
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds
QT5-15 BLOCK MAKER MACHINE
A high degree of automation. intelligent electronic control. automatic process adopts foreign advanced PLC (programmable controller) intelligent control. equipped with products process data input. storage. touch screen. have ideal and soft man-machine dialogue interface. Automatic control system contains advanced safety logic circuit to control the action interlocking. and a fault diagnosis system.
QT5-15 Full Automatic Interlocking Concrete Block Making Machine Price List In Nigeria
The simple production line of this including the host machine. stacker. mixer. belt conveyor. etc.
Good reliability. hydraulic system optimization technology to improve. excellent hydraulic parts matched with reasonable hydraulic system design. adopts the independent integrated type hydraulic pump station. avoid the effect of host vibration and dust to the hydraulic system. so as to ensure the reliability of the hydraulic system.
Good adaptability of raw materials. advanced step vibration molding technology. can make use of various waste ash slag. reasonably reduce the cement dosage. produce all kinds of high quality bearing or not bearing block products.
Equipment adaptability is strong. through changing mould easily. can quickly adjust block production. the greatest degree cater to the market demand. make best equipment effectiveness.
Composition of Automatic Block Machine Production Line ??/SPAN>
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds
Main technical parameters
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds | ||
Dimension | 7400 x 1950 x 2800mm | |
Vibration Form | Platform Vibration | |
Vibration Frequency | 4500-5100RPM | |
Brick Height | 50-200 mm | |
Pallet Size | 1100x550mm | |
Molding Cycle | 15-20s | |
Power | 30.5kw | |
Weight | 6200kgs | |
Blocks Samples
14 Bricks Once Hollow Block Machine QT5-15 Brick Making Machine Different Block Molds Main Block Size And Capacity | ||||||
Size (L x W x H) mm | Pcs/Mold | Pcs/Hour | Pcs/Day(8Hours) | |||
400 x 200 x 200 | 5 | 1200 | 9600 | |||
400 x150 x 200 | 6 | 1437 | 11500 | |||
240 x 115 x 90 | 16 | 2880 | 23040 | |||
240 x 115 x 53 | 32 | 7680 | 61440 | |||
225 x 112.5 x 60 | 16 | 2000 | 16000 | |||
200 x 100 x 60 | 20 | 4800 | 38400 | |||
Packaging And delivery
customer working site
