Sand Screening Machine Alignment Calibration Standards for Sale
Static leveling is a lie if you ignore dynamic amplitude.
Proper alignment and calibration are not just maintenance tasks but critical pre-commissioning steps that determine equipment lifespan and output efficiency. Ignoring these standards leads to immediate structural fatigue and rejected shipments.
The sun in the Gulf does not forgive mechanical negligence. I remember standing on a dusty site near Ras Al Khaimah, watching a foreman wave away a shipment of screening equipment. The frame was visibly skewed, and the vibration motors were out of phase. The client, a precast concrete producer, had seen this before. He knew that in high-temperature environments, thermal expansion would turn minor misalignments into catastrophic bearing failures within weeks. This was not about aesthetics; it was about preventing a mid-six-figure loss from downtime and premature part replacement. [NEED_CITE: impact of thermal expansion on mechanical tolerances in arid climates]
Many buyers assume that "leveling" means placing a spirit level on the base frame and calling it done. This is a dangerous misconception. True calibration requires dynamic amplitude measurement under load, synchronized phase angles for dual motors, and uniform spring compression. Without these checks, the machine fights itself, tearing mesh and shaking foundations apart.
To avoid these pitfalls, site engineers must enforce rigorous verification protocols before final acceptance. The following sections detail the critical tolerances and methods that separate a reliable asset from a costly liability.
Why Do Standard Alignment Checks Fail in Hot Climates?
Thermal expansion alters tolerances, making static checks insufficient without dynamic verification.
In regions like the Middle East and North Africa, ambient temperatures can swing dramatically between day and night. Steel frames expand and contract, shifting the geometric relationships between the screen deck, support springs, and vibration motors. A machine aligned perfectly at dawn may be critically misaligned by noon. [NEED_CITE: thermal expansion coefficients of structural steel in industrial applications]
I once consulted for an infrastructure project in West Africa where the screening plant operated continuously. The initial installation followed standard static leveling procedures. However, after several hours of operation under full solar load, the bearing temperatures spiked, and the amplitude dropped noticeably. The root cause was not poor manufacturing, but the lack of dynamic calibration that accounted for thermal growth. The frame had twisted slightly, causing the eccentric blocks to work against each other rather than in unison.
To mitigate this, calibration must include a thermal monitoring phase. During the first few hours of operation, technicians should monitor bearing temperature rise and amplitude stability. If the amplitude fluctuates significantly as the machine heats up, the static alignment needs adjustment to compensate for expected thermal expansion. This proactive approach prevents the accelerated wear that often plagues equipment in harsh environments.
What Are the Critical Tolerances for Screen Frame Leveling?
Define max deviation for base frame and deck supports to prevent structural stress.
Leveling is the foundation of all subsequent calibration steps. If the base frame is not flat, the springs will compress unevenly, leading to erratic motion and premature fatigue. The tolerance for base frame flatness is strict, typically requiring deviations to remain within a minimal range per meter of length. [NEED_CITE: ISO standards for vibrating equipment installation flatness]
Consider the case of a startup in Latin America that struggled with uneven material flow. The issue traced back to inconsistent spring compression caused by an unlevel base. One corner of the screen sat lower than the others, causing material to pool on one side while the other ran dry. This not only reduced throughput but also caused excessive wear on the screen mesh in the overloaded area.
| Check Point | Acceptance Criteria | Risk of Non-Compliance |
|---|---|---|
| Base Frame Flatness | Minimal deviation per meter | Uneven spring compression |
| Deck Support Level | Uniform height across all points | Structural stress and frame cracking |
| Motor Mount Alignment | Parallel to screen axis | Lateral shaking and bolt failure |

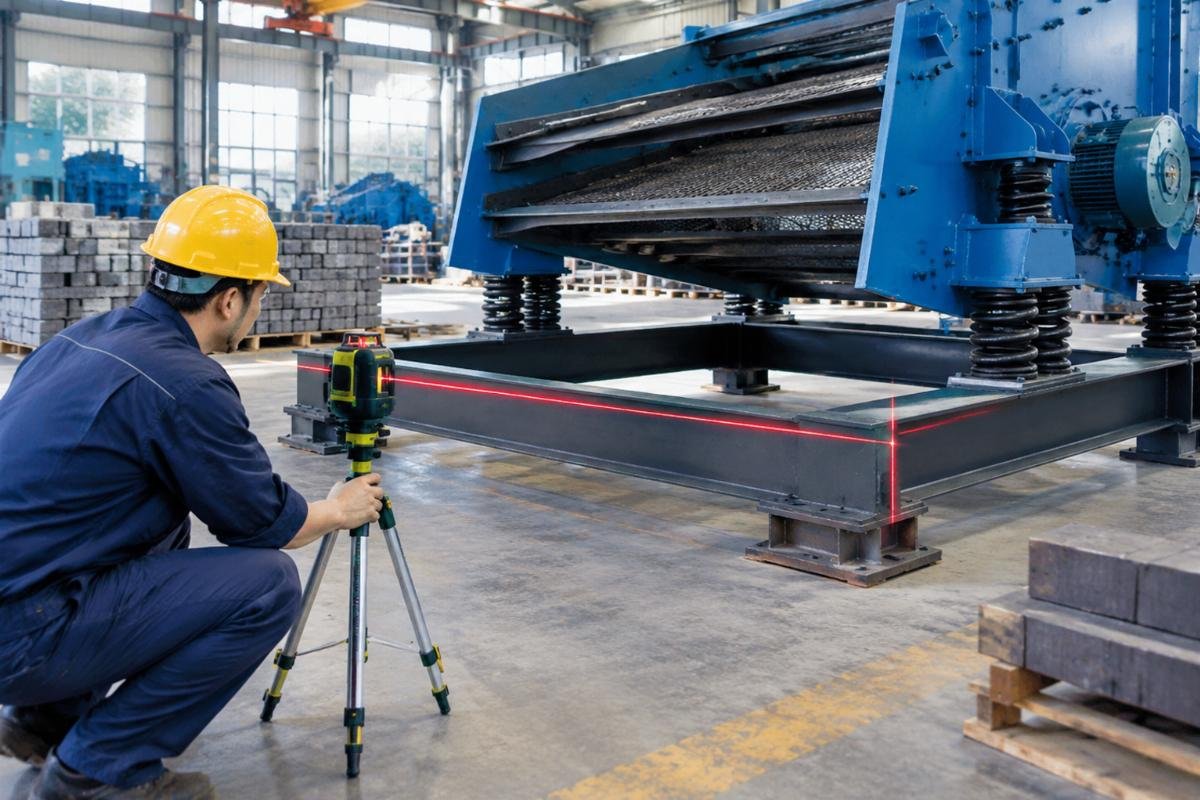

Ensuring the base frame meets these tolerances requires precision tools, not just visual inspection. Laser levels or digital inclinometers provide the accuracy needed to detect minor deviations that a spirit level might miss. Once the base is verified, the screen deck must be checked for uniformity. All support points should be at the same height relative to the base, ensuring that each spring carries its intended share of the load.
How to Calibrate Vibration Motor Eccentric Blocks Correctly?
Synchronize phase angles for linear motion and optimal amplitude.
Vibration motors are not plug-and-play components. Their performance depends entirely on the precise angle of the eccentric blocks. For linear motion screens, the blocks on opposite motors must be synchronized to generate force in a single direction. If the phase angles are mismatched, the screen will exhibit circular or elliptical motion, reducing screening efficiency and increasing stress on the structure. [NEED_CITE: principles of vibratory motion and phase synchronization]
A common error observed in the field is assuming that identical motor settings guarantee synchronization. In reality, slight variations in motor positioning or electrical supply can cause phase drift. Technicians must physically adjust the eccentric blocks to ensure they are aligned correctly. This involves loosening the block guards, rotating the blocks to the desired angle, and then tightening them securely.
The target amplitude is usually specified by the manufacturer, often falling within a specific range suitable for the material being processed. Adjusting the angle of the eccentric blocks changes the centrifugal force, thereby altering the amplitude. It is crucial to measure the amplitude dynamically using a vibration analyzer or a simple amplitude sticker while the machine is running. This real-time feedback allows for fine-tuning until the desired performance is achieved.
Which Spring Compression Metrics Predict Early Failure?
Uniformity checks prevent uneven load distribution and mesh tearing.
Springs are the suspension system of the screening machine. They isolate the vibration from the supporting structure and allow the screen deck to move freely. If the springs are not compressed uniformly, the screen will tilt during operation, causing material to flow unevenly and leading to localized wear. [NEED_CITE: effect of spring uniformity on vibratory screen dynamics]
I recall a project where a client reported frequent mesh tearing. Upon inspection, we found that the springs on one side of the screen were significantly more compressed than those on the other. This imbalance caused the screen to vibrate asymmetrically, putting excessive strain on the mesh in the lower corner. Replacing the springs and re-leveling the deck resolved the issue, extending the mesh life substantially.
To prevent this, technicians should measure the free height and compressed height of each spring during installation. All springs should have similar compression ratios, indicating that they are sharing the load equally. Any spring that deviates significantly from the average should be replaced or shimmed to achieve uniformity. This simple check can save considerable costs in spare parts and downtime.
| Spring Metric | Ideal Condition | Consequence of Deviation |
|---|---|---|
| Free Height | Consistent across all springs | Uneven initial load |
| Compressed Height | Uniform under static load | Tilted screen deck |
| Spring Rate | Matched set specifications | Resonance issues |
Regular inspection of spring condition is also vital. Cracks, corrosion, or permanent deformation indicate that a spring is failing and should be replaced immediately. Ignoring these signs can lead to sudden spring failure, which can cause severe damage to the screen frame and surrounding equipment.
How to Verify Calibration Before Final Acceptance?
Checklist for video documentation and remote sign-off to avoid on-site disputes.
Verification is the final step in ensuring that the Sand Screening Machine Alignment Calibration Standards have been met. This process should not be left to chance or verbal assurances. Instead, it requires a structured checklist and documented evidence. [NEED_CITE: best practices for equipment commissioning and handover]
In my experience, the most effective method is to require pre-shipment calibration videos. These videos should show the machine running under load, with clear views of the amplitude measurement, motor synchronization, and spring behavior. This allows the buyer to verify the performance remotely before the equipment leaves the factory. It also provides a baseline for comparison once the machine is installed on-site.
During on-site commissioning, a similar verification process should be repeated. Technicians should check the alignment, amplitude, and temperature rise again, as transportation and installation can sometimes shift components. Documenting these checks with photos and videos creates a record that can be referenced if issues arise later. This transparency builds trust between the supplier and the buyer, reducing the likelihood of disputes.
A comprehensive acceptance checklist should include:
- Verification of base frame levelness.
- Confirmation of spring compression uniformity.
- Measurement of dynamic amplitude under load.
- Inspection of motor phase angle synchronization.
- Monitoring of bearing temperature during initial run-in.
By adhering to this rigorous verification process, buyers can ensure that their equipment is ready for immediate, efficient operation. It transforms the commissioning phase from a potential source of conflict into a collaborative validation of quality.
Conclusion
Calibration is the difference between a machine that works and one that lasts.
Adhering to strict Sand Screening Machine Alignment Calibration Standards ensures optimal performance and longevity. By focusing on dynamic verification, thermal considerations, and uniform load distribution, operators can avoid common pitfalls that lead to premature failure. This disciplined approach protects investment and maximizes productivity in demanding environments.
