Mobile Block Machine QMY6-25/QMY10-15 Assembly Guide for Contractors

Most assembly delays are not caused by missing bolts, but by incorrect customs documentation and unprepared foundations.

Successful installation of a mobile block machine requires precise foundation leveling, strict adherence to hydraulic bleeding protocols, and verification of local electrical phase compatibility before power-up. Skipping pre-assembly site preparation or ignoring voltage specifications often leads to motor burnout or inconsistent block density, negating the mobility advantage of the equipment.

I still recall the silence in the port office when the inspection report came back. A shipment destined for West Africa was held because the packing list did not match the physical arrangement inside the container. Two electric motors were buried under steel frames, triggering a full manual unpacking for customs verification. The delay lasted over twenty days. The client’s construction site stood idle, and the promised start date for block production vanished. That incident reshaped how I view the Mobile Block Machine Assembly Guide. It is not merely a technical manual for wrenches and screws; it is a logistical and engineering protocol that begins long before the crate arrives at the site. [NEED_CITE: common causes of customs delays for industrial machinery imports]

The assumption that "mobile" implies "no preparation" is a costly misconception. While these machines do not require massive concrete silos or permanent steel structures, they demand a specific type of stability. Without a level, cured surface, the vibration mechanism cannot compact the concrete mix uniformly, resulting in blocks with varying densities and strengths. This guide breaks down the critical phases of setup, drawing from field experiences across multiple continents, to ensure your QMY series machine starts producing quality blocks from day one.

Why Does Pre-Assembly Documentation Matter More Than You Think?

Accurate customs paperwork prevents costly port delays before you even touch a wrench.

The first step in any Mobile Block Machine Assembly Guide is not mechanical; it is administrative. When importing heavy machinery into emerging markets, customs authorities often scrutinize shipments for valuation and classification accuracy. An incorrect HS code or a vague description can trigger a physical inspection. As seen in the West Africa case, if high-value items like PLC control panels or motors are not clearly declared and easily accessible, officials may order the entire container to be stripped.

To avoid this, the packing list must mirror the physical loading plan. Heavy items should be positioned near the doors, and sensitive electronics should be boxed separately with clear labels. [NEED_CITE: best practices for industrial equipment packing lists for customs clearance] Furthermore, ensuring the HS code aligns with local import regulations for construction machinery is vital. Some regions have specific duty exemptions for agricultural or infrastructure development equipment, but these require precise documentation.

A buyer in Southeast Asia once faced a month-long holdup because the invoice listed "used parts" instead of "new machinery components," raising suspicions of illicit trade. The resolution required notarized letters from the manufacturer, costing time and legal fees. By treating the documentation as part of the assembly process, you secure the timeline for the actual physical setup.

How to Prepare the Site for a "Mobile" Machine?

Even mobile units require a level, cured concrete base to ensure product quality and machine longevity.

The term "mobile" refers to the machine’s ability to be relocated between sites, not its operation on uneven ground. The QMY6-25 and QMY10-15 models use a vibrating mold system to compact concrete. If the base is uneven, the vibration energy dissipates irregularly, leading to weak spots in the blocks. Moreover, constant operation on an unstable surface accelerates wear on the frame and wheel bearings.

The foundation must be a reinforced concrete pad with a minimum thickness suitable for the machine’s weight and dynamic load. Crucially, the concrete must be fully cured. A client in Latin America attempted to install their machine on a pad that was only three days old. The weight of the machine, combined with the intense vibration during operation, caused micro-cracks in the fresh concrete. Within weeks, the pad settled unevenly, causing the machine to tilt. This misalignment resulted in inconsistent block heights and frequent jamming of the pallet system. [NEED_CITE: concrete curing time requirements for heavy machinery foundations]

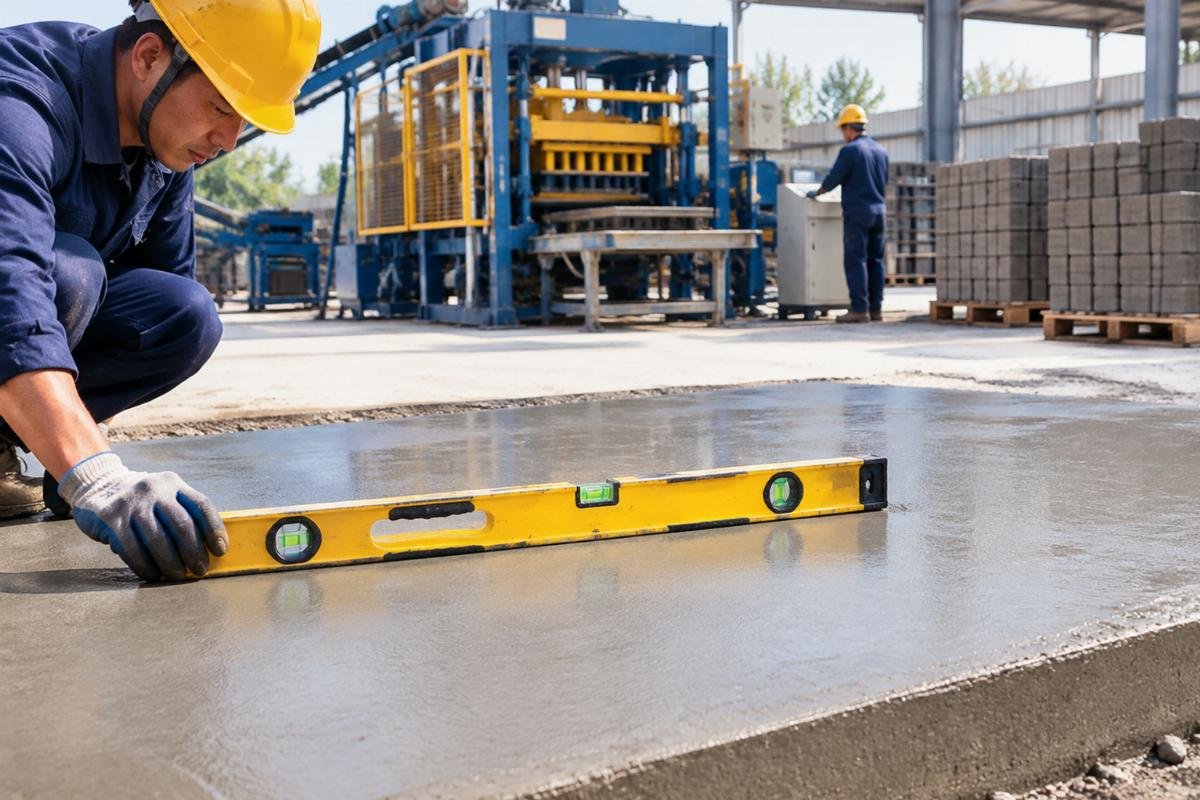

Flatness tolerance is another critical factor. The surface should be checked with a spirit level across multiple axes. Any deviation beyond a few millimeters can cause the machine to "walk" during operation, stressing the structural welds. Before uncrating, ensure the site is clear of debris and has adequate drainage to prevent water accumulation under the machine, which can lead to rust and electrical hazards.

What Are the Critical Steps in Mechanical & Hydraulic Assembly?

Follow torque specs strictly and bleed hydraulic lines to avoid early system failure.

Once the machine is positioned, the mechanical assembly begins. This involves attaching the hopper, conveyor belts, and mold boxes. Each bolt must be tightened to the specified torque. Over-tightening can strip threads, while under-tightening leads to loosening due to vibration. Use a calibrated torque wrench for all critical connections, especially those holding the vibrating motor and mold assembly.

The hydraulic system is the heart of the block machine. Air trapped in the hydraulic lines can cause spongy operation, reduced pressure, and damage to the pump. Bleeding the system is a non-negotiable step. Start by filling the reservoir with the recommended hydraulic oil grade. Then, loosen the bleed screws on the cylinders slightly while operating the controls to extend and retract the pistons slowly. This allows air bubbles to escape. Repeat until the fluid flows without froth. [NEED_CITE: standard hydraulic system bleeding procedures for construction equipment]

Neglecting this step can lead to cavitation in the pump, a condition where vapor bubbles form and collapse, eroding the metal surfaces. A contractor in the Middle East reported noisy operation and sluggish movement after initial setup. Upon inspection, air locks were found in the main lifting cylinder. After proper bleeding, the machine returned to smooth, powerful operation. Regularly check hose connections for leaks during the first few hours of operation, as thermal expansion can loosen fittings.

How to Verify Electrical Safety Before Powering On?

Match voltage phases and check grounding to protect sensitive PLC components.

Electrical mismatches are a leading cause of premature motor failure. Before connecting the main power supply, verify the local grid voltage and frequency. Many regions operate on 380V/50Hz, while others use 440V/60Hz. Connecting a machine designed for one standard to a different grid can burn out the motors or damage the PLC control panel. [NEED_CITE: international voltage and frequency standards for industrial machinery]

Use a multimeter to check the voltage at the connection point. Ensure the phase sequence is correct for motors that require specific rotation directions, such as the mixer or conveyor. Incorrect phase sequence can cause motors to run backward, potentially damaging mechanical components. Additionally, verify the grounding connection. A proper earth ground protects operators from electric shock and prevents electrical noise from interfering with the PLC’s sensitive electronics.

In a project in South Asia, a team connected the machine without checking the phase sequence. The hydraulic pump motor ran in reverse, causing immediate pressure loss and overheating. The motor had to be replaced, delaying production by several days. Always consult the electrical diagram provided in the manual and, if unsure, hire a local certified electrician to verify the connections. Install a surge protector to safeguard the control system from voltage spikes, which are common in areas with unstable grids.

What Is the Checklist for First-Run Commissioning?

Dry runs and mold adjustments are essential before pouring the first batch of concrete.

Before introducing concrete, perform a dry run cycle. Operate all functions—mold lifting, vibration, feeding, and discharging—without load. Listen for unusual noises and observe the smoothness of movement. Check the limit switches and sensors to ensure they trigger correctly. This step verifies that the mechanical and electrical systems are synchronized.

Adjust the mold height and vibration time based on the desired block density. Too little vibration results in porous, weak blocks; too much can cause segregation of the aggregate. Start with the manufacturer’s recommended settings and fine-tune based on trial blocks. Measure the dimensions and weight of the first few blocks to ensure consistency. [NEED_CITE: quality control parameters for concrete block production]

During this phase, train the operators on safety protocols and emergency stop procedures. Familiarize them with the daily maintenance checklist, including lubrication points and filter checks. A well-trained operator can identify minor issues before they become major failures. For complex setups, remote diagnostic support can be invaluable. Technicians can review video feeds or data logs to troubleshoot issues in real-time, reducing downtime. This level of support ensures that the transition from installation to full-scale production is seamless, maximizing the return on investment for the new plant.

Conclusion

Proper assembly is the foundation of profitable block production.

Ignoring the nuances of customs documentation, foundation preparation, and electrical verification turns a simple setup into a prolonged ordeal. By following this Mobile Block Machine Assembly Guide, contractors can avoid common pitfalls and ensure their equipment operates efficiently from the start. Attention to detail in these early stages pays dividends in machine longevity and product quality.
