Tightly covering your block cuber during the off-season accelerates rust faster than leaving it exposed to the air.

Effective off-season storage for a block cuber is not merely about powering down; it requires active preservation of hydraulic seals, strict humidity control for electrical cabinets, and elevated pallet management to prevent structural degradation and ensure immediate restart capability.

I still remember the phone call from Lagos. It was the peak of the rainy season, and a client had shut down his QT8-15 line for two months due to low demand. He blamed the machine for seizing up, claiming the chain drive was "defective." When I reviewed the photos he sent, the issue wasn’t mechanical failure—it was neglect. The wooden pallets were stacked directly on the muddy ground, absorbing moisture that wicked into the bottom layer of blocks, causing them to crumble. Worse, the block cuber itself was wrapped in a non-breathable plastic tarp, trapping humid tropical air against the steel frame. The result was severe corrosion on the guide rails and seized chains. This wasn’t an isolated incident. In Latin America, another plant owner faced hydraulic leaks upon restart because the seals had dried out and cracked during a three-month idle period. These scenarios highlight a critical gap in operational planning: the assumption that static equipment remains stable. In reality, idle machinery degrades faster than running equipment due to the lack of thermal cycling and lubrication distribution [NEED_CITE: impact of static load on bearing deformation]. Proper block cuber storage handling off-season solutions must address these invisible threats before they become costly repairs.

Transitioning from active production to long-term storage requires a shift in mindset from efficiency to preservation. The following protocols are designed to protect your investment during low-demand periods or seasonal shutdowns.

How to Prepare the Block Cuber for Long-Term Storage?

Cleaning and pressure release are the foundational steps that determine whether your machine wakes up smoothly or requires major overhaul.

Before any cover is placed or power is cut, the machine must be stripped of its operational residue. Concrete dust is hygroscopic, meaning it absorbs moisture from the air. When left on guide rails or chain drives, this dust forms a abrasive paste that accelerates wear and promotes rust [NEED_CITE: chemical composition of concrete dust and moisture absorption].

1. Deep Cleaning: Remove all concrete buildup from the mold area, feed drawer, and especially the chain drives of the block cuber. Use a degreaser to strip old oil, then apply a fresh, heavy-duty anti-rust coating. Focus on exposed steel surfaces and chrome-plated rods.
2. Hydraulic Pressure Release: Never leave the hydraulic system under pressure during storage. Static pressure stresses hoses and seals, leading to premature fatigue. Cycle all cylinders to their retracted positions and relieve system pressure according to the manufacturer’s manual.

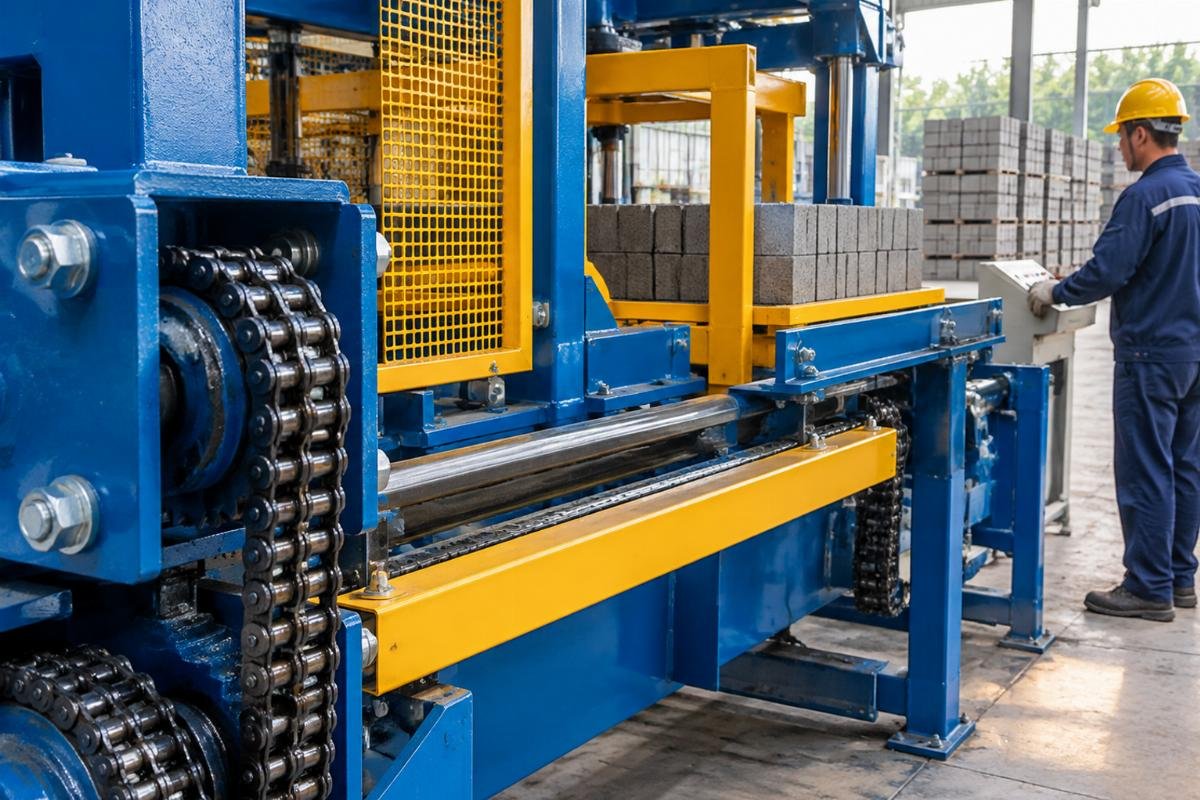

3. Lubrication Saturation: Apply a thick layer of grease to all open gears, chains, and guide rails. Unlike operational lubrication, which is thin for speed, storage lubrication must be viscous enough to act as a barrier against oxygen and moisture.

A common mistake observed in Southeast Asian plants is skipping the cleaning step to save time. One facility in Vietnam left residual concrete on the palletizer chains. Within weeks, the moisture in the air reacted with the alkaline concrete, creating a corrosive environment that pitted the chain links. This damage was irreversible and required full chain replacement upon restart.

What Are the Critical Checks for Hydraulic and Electrical Systems?

Static hydraulic seals dry out and crack without regular movement, while unsealed electrical cabinets become magnets for corrosion in coastal environments.

The hydraulic system is the heart of the block cuber, and its vulnerability during idle periods is often underestimated. Seals rely on contact with hydraulic fluid to remain pliable. When a machine sits for months, the fluid drains away from certain seal interfaces, causing them to shrink and harden. Upon restart, high-pressure fluid forces its way past these brittle seals, resulting in immediate leaks [NEED_CITE: hydraulic seal degradation mechanisms during idle periods].

To mitigate this, implement a monthly manual cycling protocol. Even if the plant is closed, an operator should visit the site every two weeks to start the hydraulic pump and cycle the main press and cuber arms through their full range of motion. This redistributes fluid and keeps seals supple. If manual cycling is impossible, consider using a preservative fluid additive designed for long-term storage, though physical movement remains the gold standard.

Electrical systems face a different threat: humidity and salt air. In coastal regions like West Africa or the Caribbean, salt particles penetrate standard electrical cabinets. Once inside, they attract moisture, leading to short circuits and corrosion of PLC boards.

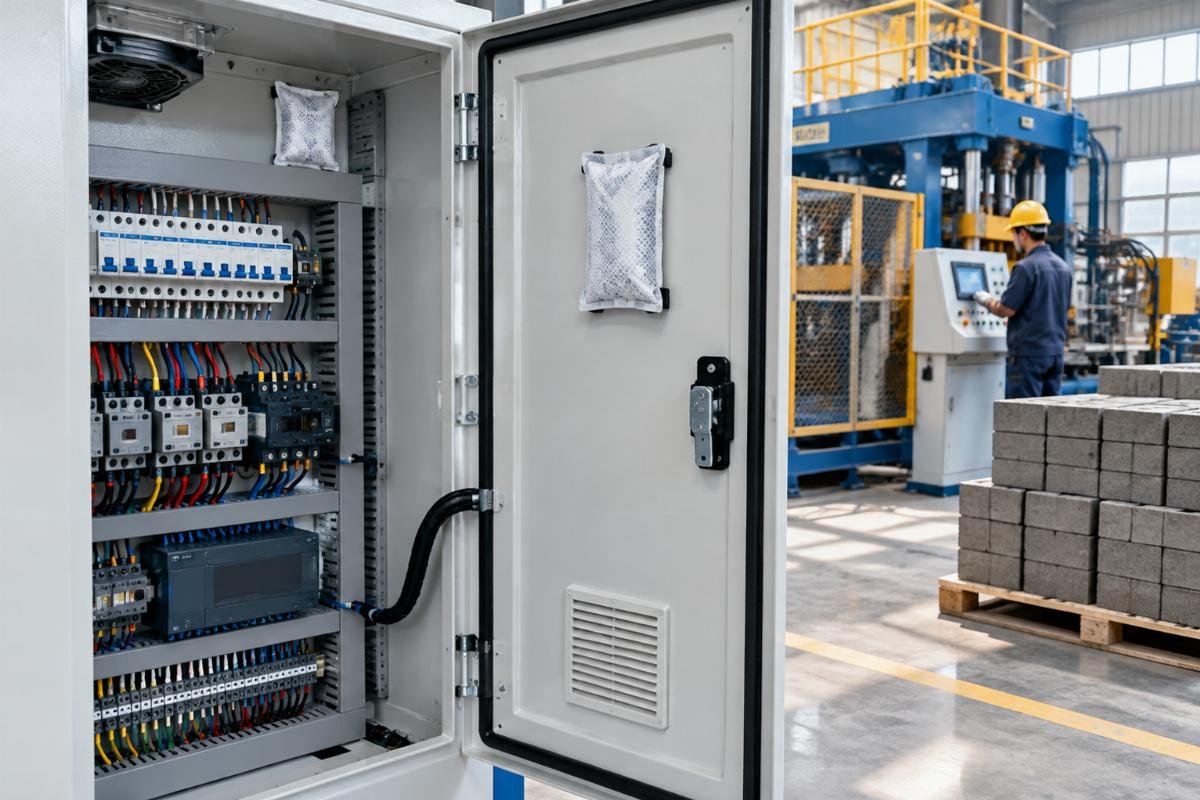

• Seal Integrity: Check the rubber gaskets on all electrical cabinet doors. Replace any that show signs of cracking or compression set.
• Desiccant Usage: Place industrial-grade desiccant bags inside each electrical cabinet. Monitor and replace them monthly, or use heated breather vents if power is available to maintain a dry internal environment.
• Terminal Protection: Apply dielectric grease to all exposed terminal connections to prevent oxidation.

How Should Pallets and Finished Blocks Be Stored?

Improper pallet stacking traps moisture and causes warping, leading to high breakage rates when production resumes.

The block cuber does not operate in isolation; it interacts directly with pallets and finished products. How these elements are stored during the off-season directly impacts the machine’s efficiency upon restart. Warped pallets cause misalignment in the cuber, leading to jammed blocks and increased wear on the transfer fingers.

In the Lagos case mentioned earlier, the root cause of the 15% block breakage was not the machine’s gripping force, but the water-absorbed state of the blocks due to poor pallet storage. Pallets left on bare ground absorb capillary moisture from the soil. This moisture transfers to the bottom layer of blocks, weakening their structural integrity.

Best Practices for Pallet Management:

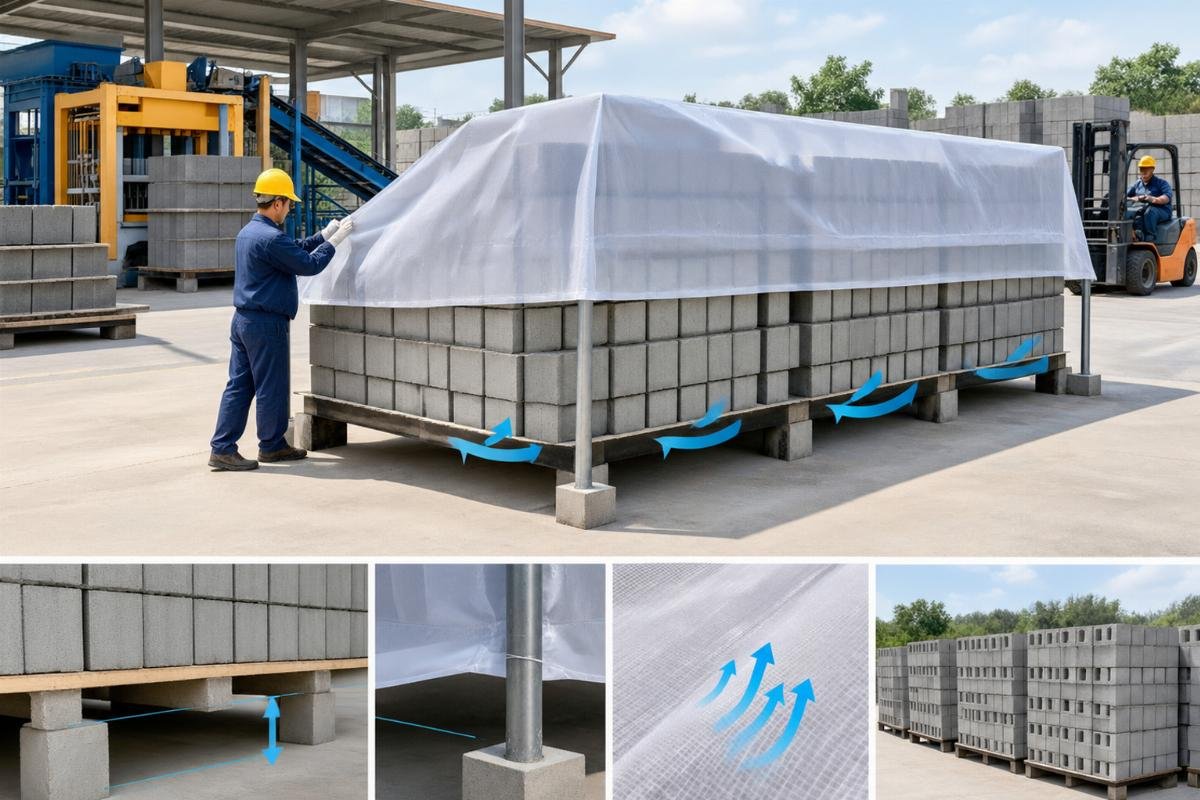

• Elevation: Store pallets on raised racks or concrete pads, ensuring a minimum clearance of 20cm from the ground. This allows airflow underneath and prevents direct contact with damp soil.
• Stacking Pattern: Avoid tight, solid stacks. Use spacers or staggered stacking patterns to allow air circulation between layers. This prevents the buildup of localized humidity pockets that can warp wooden or composite pallets.
• Covering: If pallets must be stored outdoors, use breathable tarps. Non-breathable plastics trap evaporating moisture, creating a greenhouse effect that accelerates rot in wooden pallets and promotes mold growth.

For finished blocks, ensure they are fully cured before storage. Green blocks stored in humid conditions continue to hydrate unevenly, leading to expansion cracks. Store cured blocks under cover, protected from direct rain but allowed to breathe.

What Is the Restart Protocol After Idle Period?

Rushing to full production without a systematic inspection invites immediate mechanical failure and safety hazards.

Restarting a block cuber after a long idle period is not as simple as pressing the start button. The machine has undergone thermal contraction, lubricant settling, and potential environmental intrusion. A structured restart protocol is essential to verify system integrity.

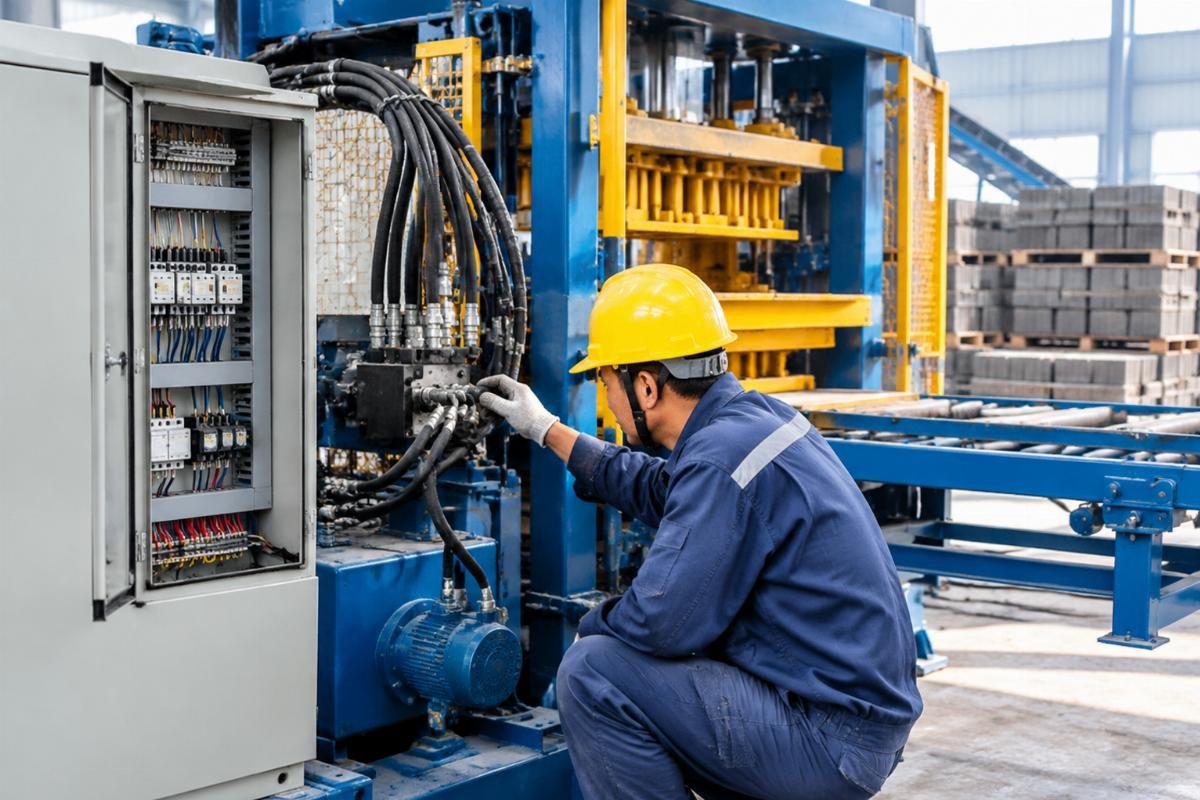

1. Visual Inspection: Remove all protective covers and inspect for rust, pest infestation (rodents often nest in warm electrical boxes), and loose connections. Check hydraulic hoses for cracks caused by seal drying.
2. Lubrication Check: Wipe off the heavy storage grease from guide rails and chains. Reapply operational-grade lubricant. Storage grease is too thick for high-speed operation and can attract dust, causing abrasion.
3. Hydraulic System Prime: Start the hydraulic pump at low pressure. Listen for unusual noises that might indicate cavitation or air in the lines. Check all cylinders for leaks as pressure builds. Allow the system to warm up gradually to restore fluid viscosity.
4. Electrical System Test: Power up the PLC and HMI. Check for error codes. Test all safety interlocks and emergency stops to ensure they function correctly. Moisture may have compromised sensor readings, so calibrate proximity sensors if necessary.
5. Dry Run: Run the block cuber through several cycles without concrete. Observe the synchronization between the feeder, press, and cuber. Ensure pallets are transferring smoothly and that the stacking mechanism is aligned.

Shiyue’s turnkey solutions include a specific "Restart & Commissioning" training module for operators. This ensures that clients know how to safely bring the QT series lines back online after breaks, minimizing downtime and preventing operator error during the critical startup phase. By treating the restart as a commissioning event rather than a simple startup, plant owners can avoid the costly mistakes that often plague post-shutdown operations.

Conclusion

Neglecting off-season storage protocols turns a temporary shutdown into a permanent liability.

Proper block cuber storage handling off-season solutions require proactive maintenance, not just passive idling. By controlling humidity, preserving hydraulic integrity, and managing pallet storage correctly, plant owners can ensure their equipment remains ready for immediate, efficient production when demand returns. The cost of prevention is negligible compared to the expense of repairing corroded chains, replaced seals, and wasted product.
